Gravel Foundations
CORE Gravel™ Foundation Products
It's all about the power of the honeycomb!
CORE Landscape's patented honeycomb grid foundation system is inspired by one of nature's most invaluable species - the honeybee. The incredibly strong honeycomb structure makes Core Gravel the lightest, strongest, and most flexible landscape foundation system on the market. Core Gravel grids disperse the weight of the infilled gravel, prevent compaction, and facilitate stormwater recharge; creating a stable, safe, and environmentally-friendly landscaping solution.
CORE Gravel™
CORE Path™ 38-18
Residential: Pathways & Patios
Commercial: n/a
CORE Gravel™
CORE Patio 50-30
Residential: Patios, Pathways, & Parking Pads
Commercial: n/a
CORE Gravel™
50-35HD(R) - Recycled plastic
Residential: Driveways
Commercial: Patios & Pathways
CORE Gravel™
CANA Gravel™ Light
Residential: Patios, Pathways, & Driveways
Commercial: n/a
CORE Gravel™
CANA Gravel™ HD
Residential: Driveways
Commercial: Patios & pathways
CORE Gravel™
50-35HD - Virgin plastic
Residential: Driveways
Commercial: Patios, Pathways, & Parking pads
CORE Gravel™
60-40 *Superior Drainage
Residential: Hot Tub / Tiny home foundations, Driveways, & all sloped applications
Commercial: Parking lots, driveways, high traffic pathways/patios, and all sloped applications
CORE Gravel™
60-45 Ultra
Residential: n/a
Commercial: High traffic areas experience regular use by heavy duty vehicles
CORE Gravel
Products

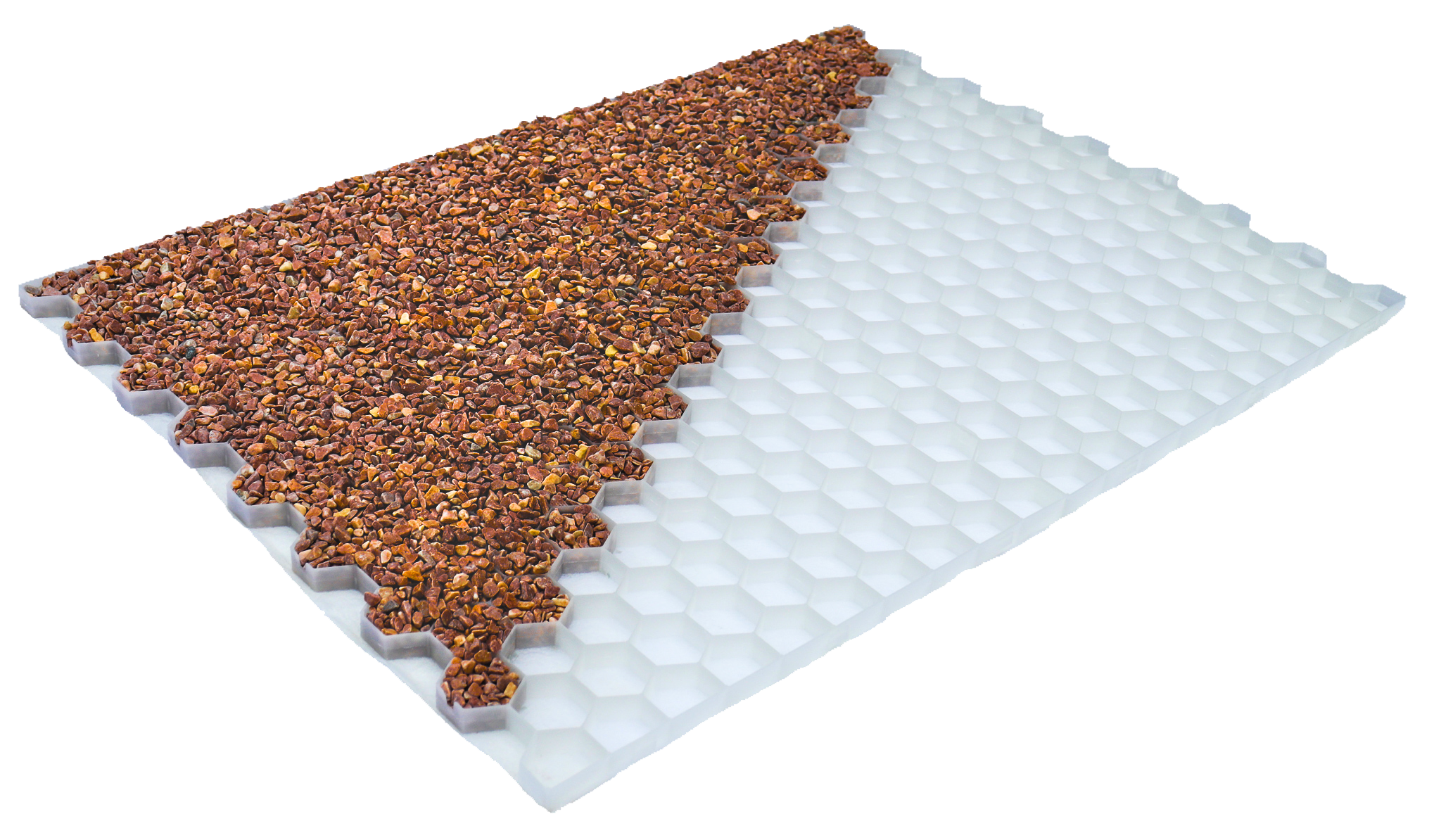

CORE Path 38-18
Use: Light duty -Â residential paths, patios, and landscaping
Gravel size: 3 - 10 mm
Cell Size: 38 mm wide x 18 mm deep
Cell Wall Thickness: 1.0 mm
Sheet Size: 1.15 m x .8 m (= 9.9 sq. ft.)
Cell Colour: White
Geotextile Fabric: Yes
Compressive Strength: 40 t/m2 (empty)
Suitable for vehicles: No, pedestrian traffic only
CORE Markers: Yes
Slopes: Excellent
CORE Gravel™ 50-30
Use: Light to Medium duty -Â patios, pathways, light-duty parking pads, and landscaping
Gravel size: 5 -15 mm
Cell Size: 50 mm wide x 30 mm deep
Cell Wall Thickness: 1.3 mm
Sheet Size: 1.2 m X 0.8 m (= 10.33 sq.ft.)
Cell Colour: White
Geotextile Fabric: Yes
Compressive Strength: 60 t/m2 (empty)
Suitable for vehicles: Yes, light duty vehicles only
CORE Markers: Yes
Slopes: Excellent but use dependent: i.e. parking: no greater than 10 degree, other non-vehicular use: steep slope suitable.
CORE Gravel™ 50-35HD(R) - Recycled Plastic
Use: Heavy Duty - commercial paths, residential driveways, restaurant patios, and more
Gravel size: 7 – 15 mm
Cell Size: 50 mm wide x 35 mm deep
Cell Wall Thickness: 2.0 mm
Sheet Size: 1.15Â m x .78Â m (= 9.7Â sq.ft.)
Cell Colour: Grey (Dark) or Black
Geotextile Fabric: Yes
Compressive Strength: 150 t/m2 (empty)
Suitable for vehicles: Yes
CORE Markers: Yes
Slopes: Excellent of low slopes. Steeper slopes should move to the virgin plastic version of this grid (50-35HD)
CORE Gravel™ 50-35HD - Virgin Plastic
Use: Heavy Duty - commercial paths, residential driveways, restaurant patios, and more
Gravel size: 7 – 15 mm
Cell Size: 50 mm wide x 35 mm deep
Cell Wall Thickness: 2.0 mm
Sheet Size: 1.15Â m x .78Â m (= 9.7Â sq.ft.)
Cell Colour: Meaders Grey (light) or White
Geotextile Fabric: Yes
Compressive Strength: 150 t/m2 (empty)
Suitable for vehicles: Yes
CORE Markers: Yes
Slopes: Excellent on any steep slope
CORE Gravel™ 60-40 *Superior Drainage
Use: Heavy duty -  vehicular traffic, commercial parking, sloped driveways, green roofs, flood zones
Gravel size: 7 – 15 mm
Cell Size: 60 mm wide x 40 mm deep
Cell Wall Thickness: 2.5 mm
Sheet Size: 1.15 m x 1.0 m (= 12.4 sq.ft.)
Cell Colour: Black (100% post-consumer recycled materials)
Geotextile Fabric: Yes
Compressive Strength: 200 t/m2 (empty)
Suitable for vehicles: Yes, Regular and Heavy Duty Vehicles
CORE Markers: Yes (click on link to buy)
Slopes: Excellent, any slope (How to install - Steep Slope Driveway)

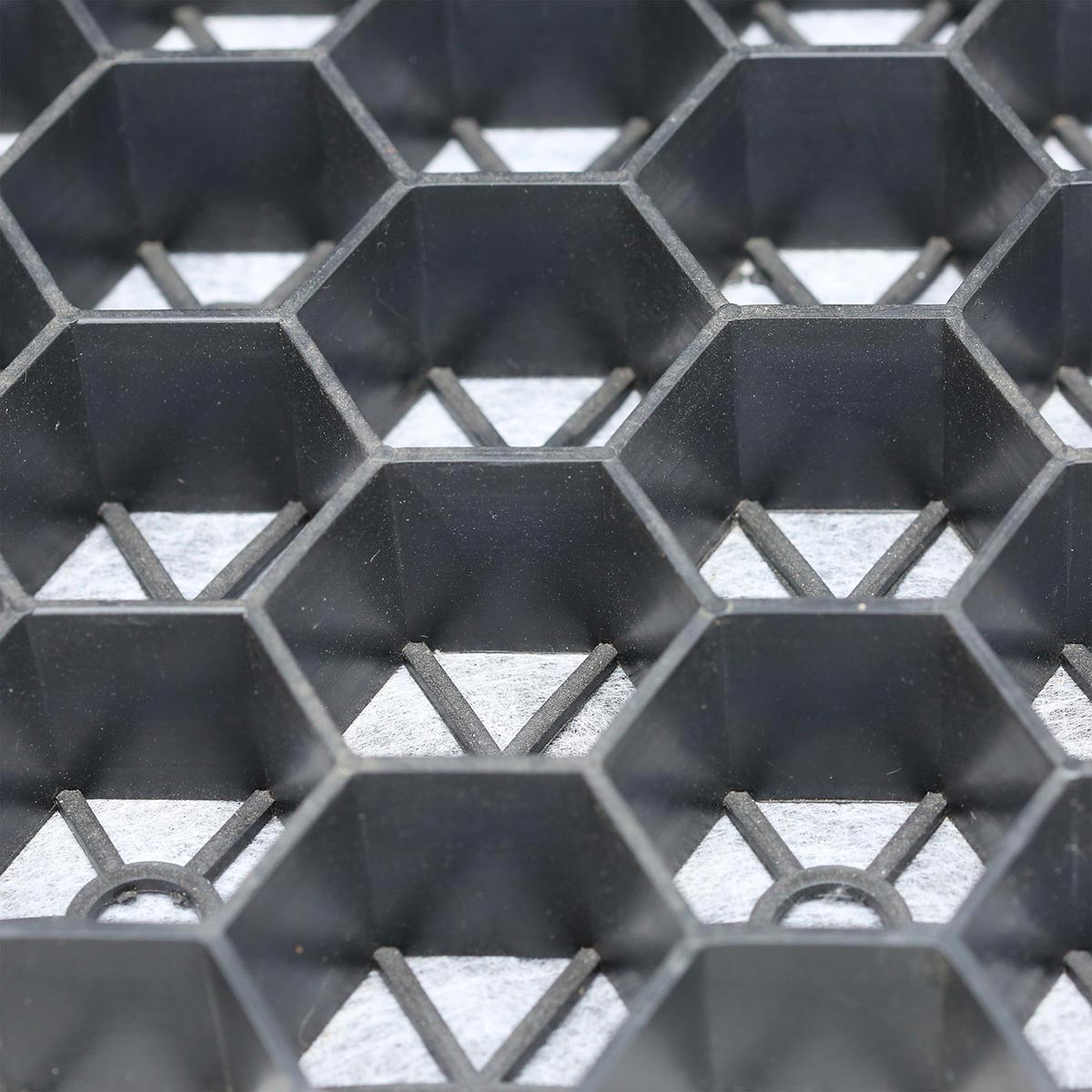

CORE Gravel™ 65-45 Ultra
This is our heaviest duty panel yet. Created for those sites where consistent (daily) use by heavy vehicles is anticipated (65-45 is only availableRecycled). Great for horse pastures and heavy-duty commercial vehicle applications. For more information regarding product specs please get in touch.
