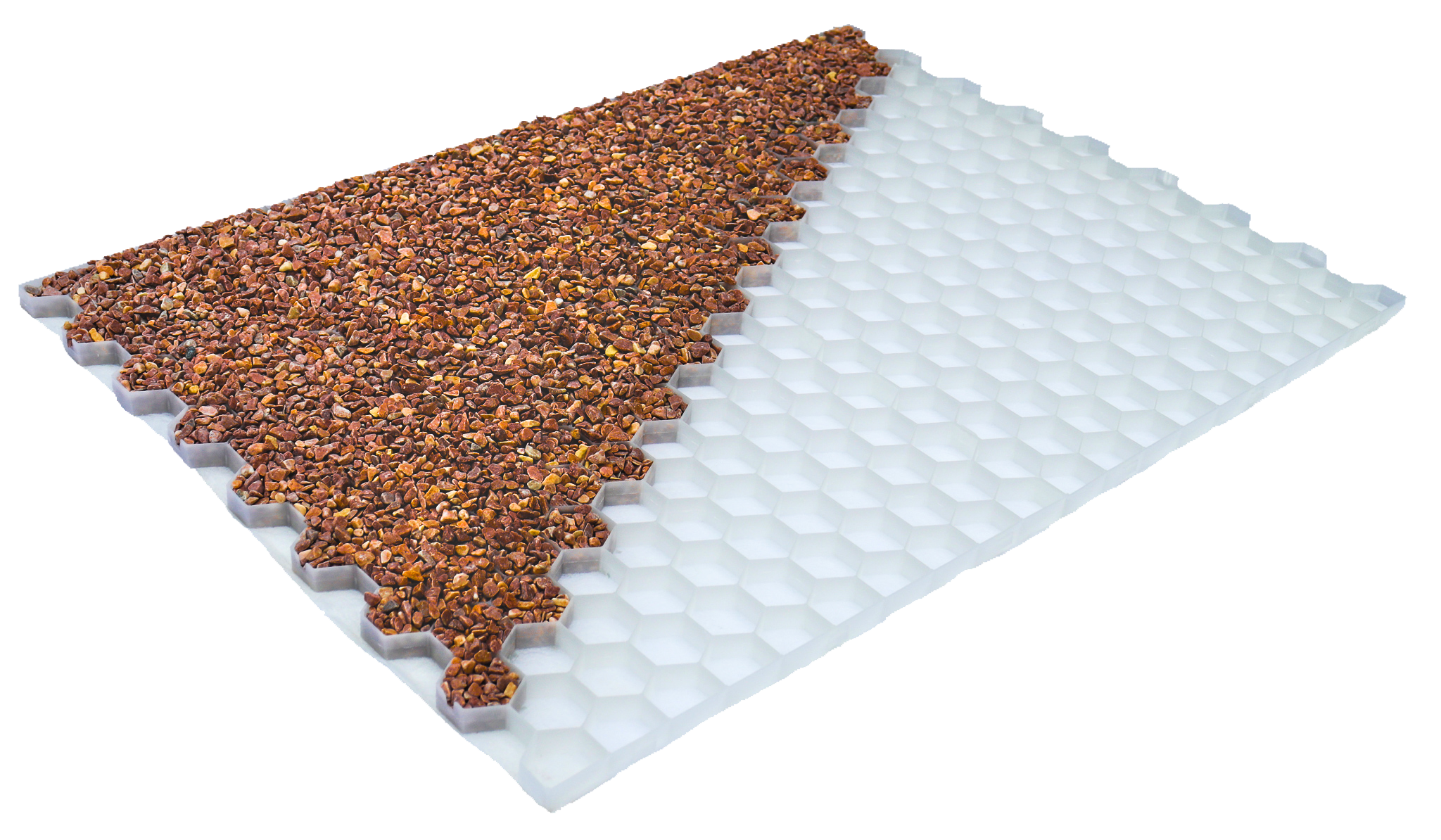

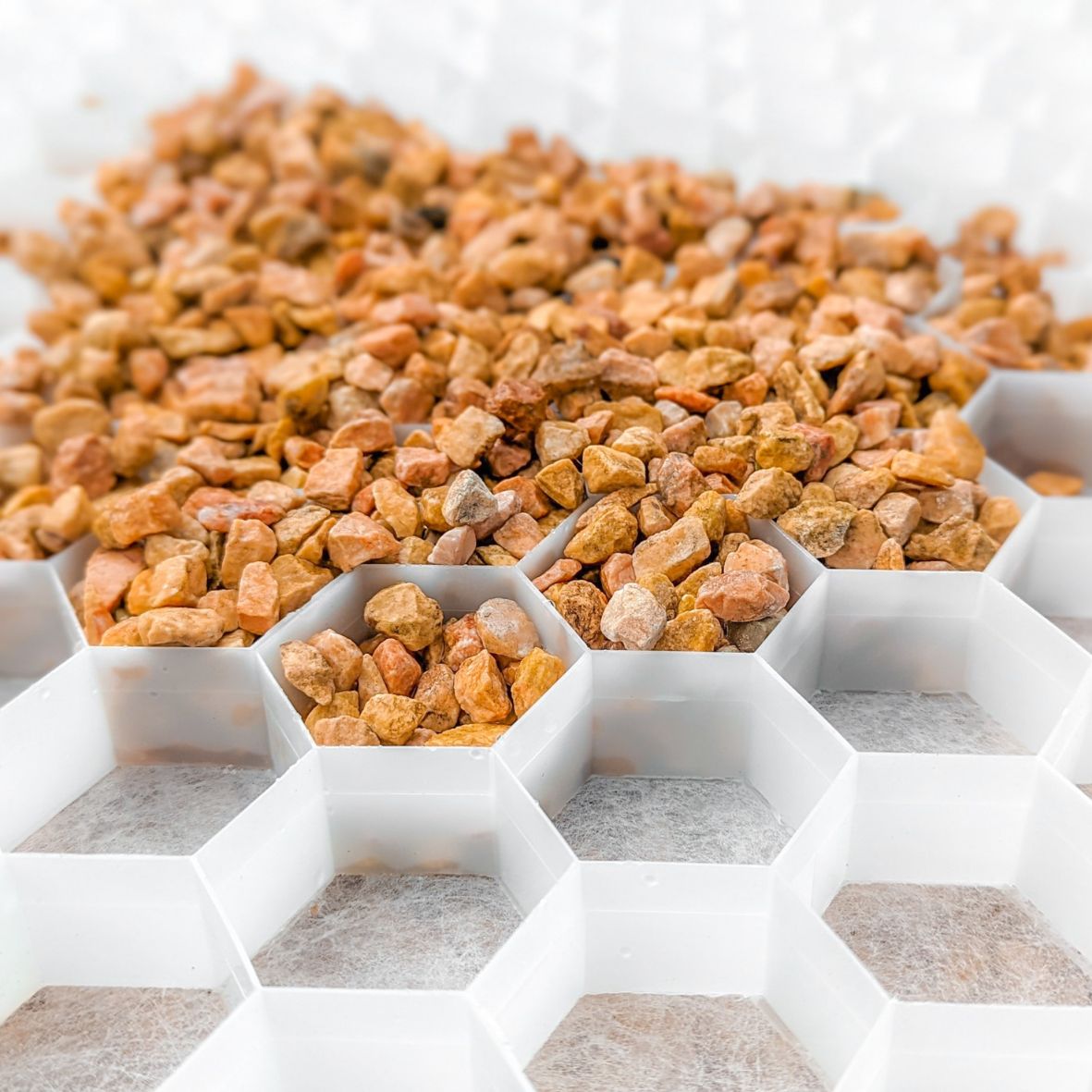

38-18 - Light Duty

Residential Path & Patio

Use: Light duty - residential paths, patios, and landscaping
Gravel size: 3 - 8 mm
Cell Size: 38 mm wide x 18 mm deep
Cell Wall Thickness: 1.0 mm
Sheet Size: 1.15 m x .8 m (= 9.9 sq. ft.)
Cell Colour: White
Geotextile Fabric: Yes
Compressive Strength: 40 t/m2 (empty)
Suitable for vehicles: No, pedestrian traffic only
CORE Markers: Yes
Slopes: Excellent

50-30 - Medium Duty

Patio, Pathway, Parking pads

Use: Residential Light to Medium duty - patios, pathways and landscaping
Gravel size: 5 -15 mm
Cell Size: 50 mm wide x 30 mm deep
Cell Wall Thickness: 1.3 mm
Sheet Size: 1.2 m X 0.8 m (= 10.33 sq.ft.)
Cell Colour: White
Geotextile Fabric: Yes
Compressive Strength: 60 t/m2 (empty)
Suitable for vehicles: Yes, light duty vehicles only
CORE Markers: Yes
Slopes: Great but use dependent: i.e. parking: no greater than 10 degree, other non-vehicular use: steep slope suitable.

CANA Grid (100% made in canada) - Medium/Heavy Duty

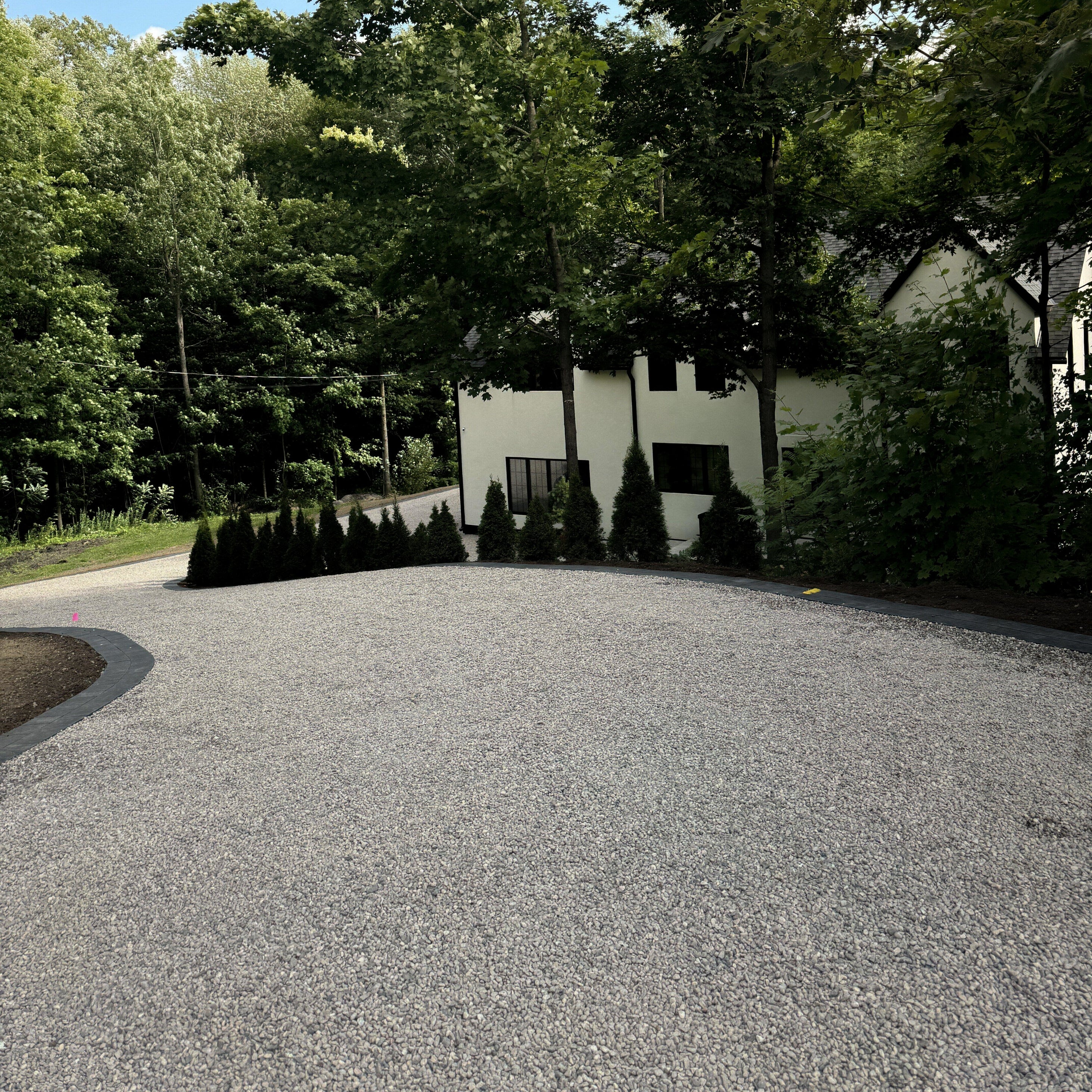

residential Driveways & commercial patios

Use: Heavy Duty - commercial paths, residential driveways, restaurant patios, and more
Gravel size: 7 – 15 mm
Cell Size: 50 mm wide x 35 mm deep
Cell Wall Thickness: 2.3 mm
Sheet Size: 22.7" x 18.7" x 1.38"
Cell Colour: Grey (Dark) or White
Geotextile Fabric: No
Compressive Strength: 120 t/m2 (empty). Over 250 t/m2 (filled)
Suitable for vehicles: Yes
CORE Markers: Yes
Slopes: Great for low slopes. Medium & Heavy duty versions of this grid are available.

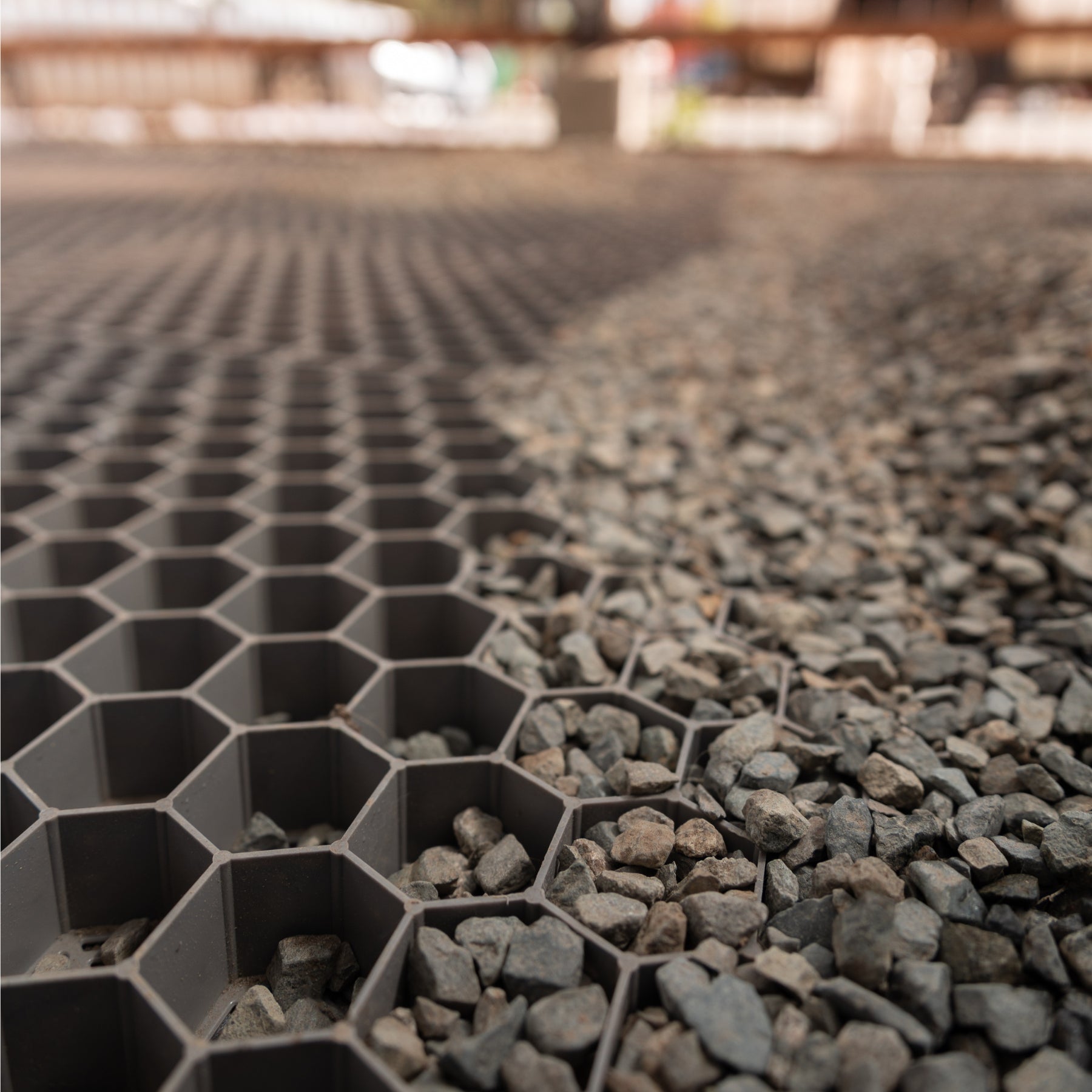

50-35 Heavy Duty

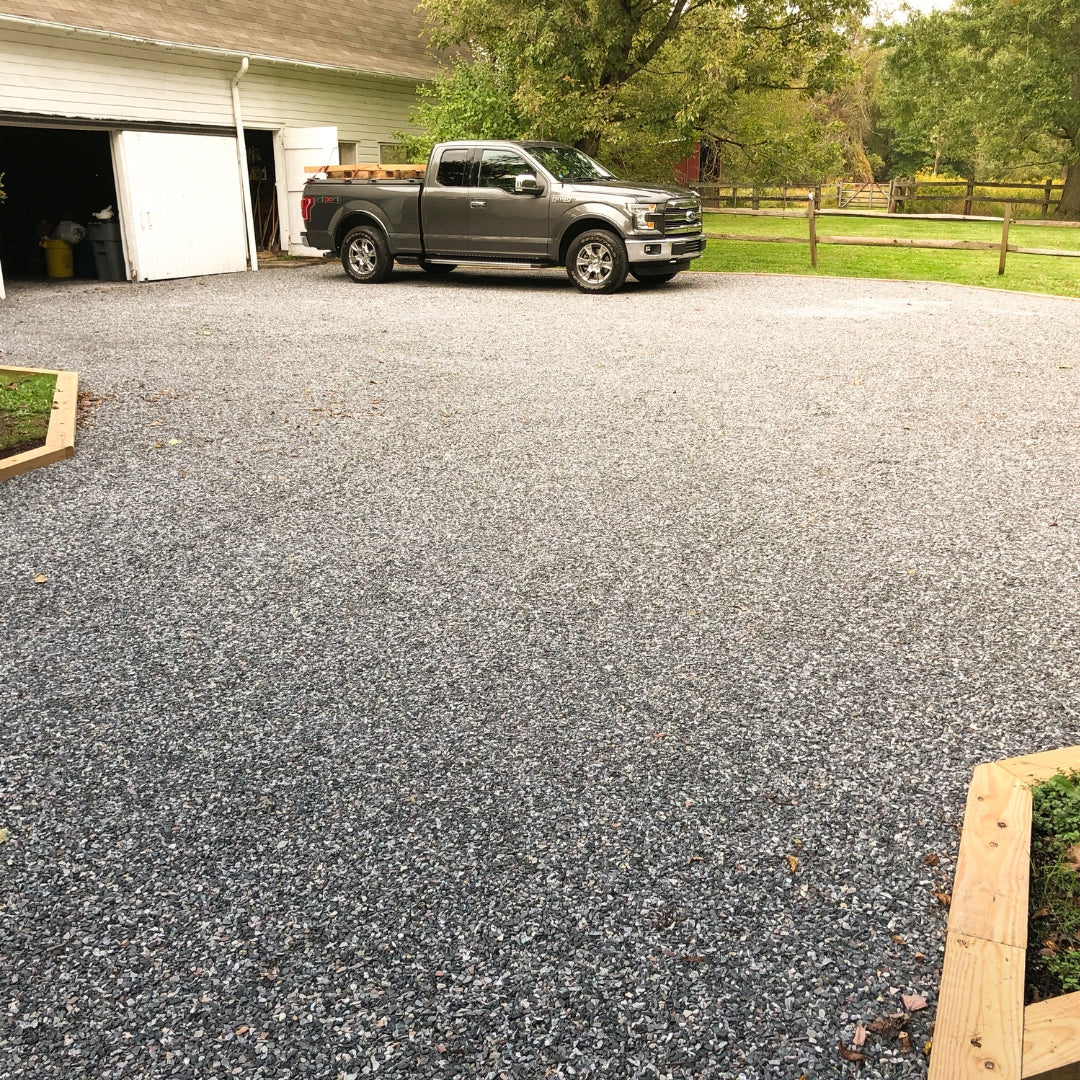

Residential driveways & Commercial patios

Use: Heavy Duty - commercial paths, residential driveways, restaurant patios, and more
Gravel size: 7 – 15 mm
Cell Size: 50 mm wide x 35 mm deep
Cell Wall Thickness: 2.0 mm
Sheet Size: 1.15 m x .78 m (= 9.7 sq.ft.)
Cell Colour: Grey (Dark) or Black
Geotextile Fabric: Yes
Compressive Strength: 150 t/m2 (empty)
Suitable for vehicles: Yes
CORE Markers: Yes

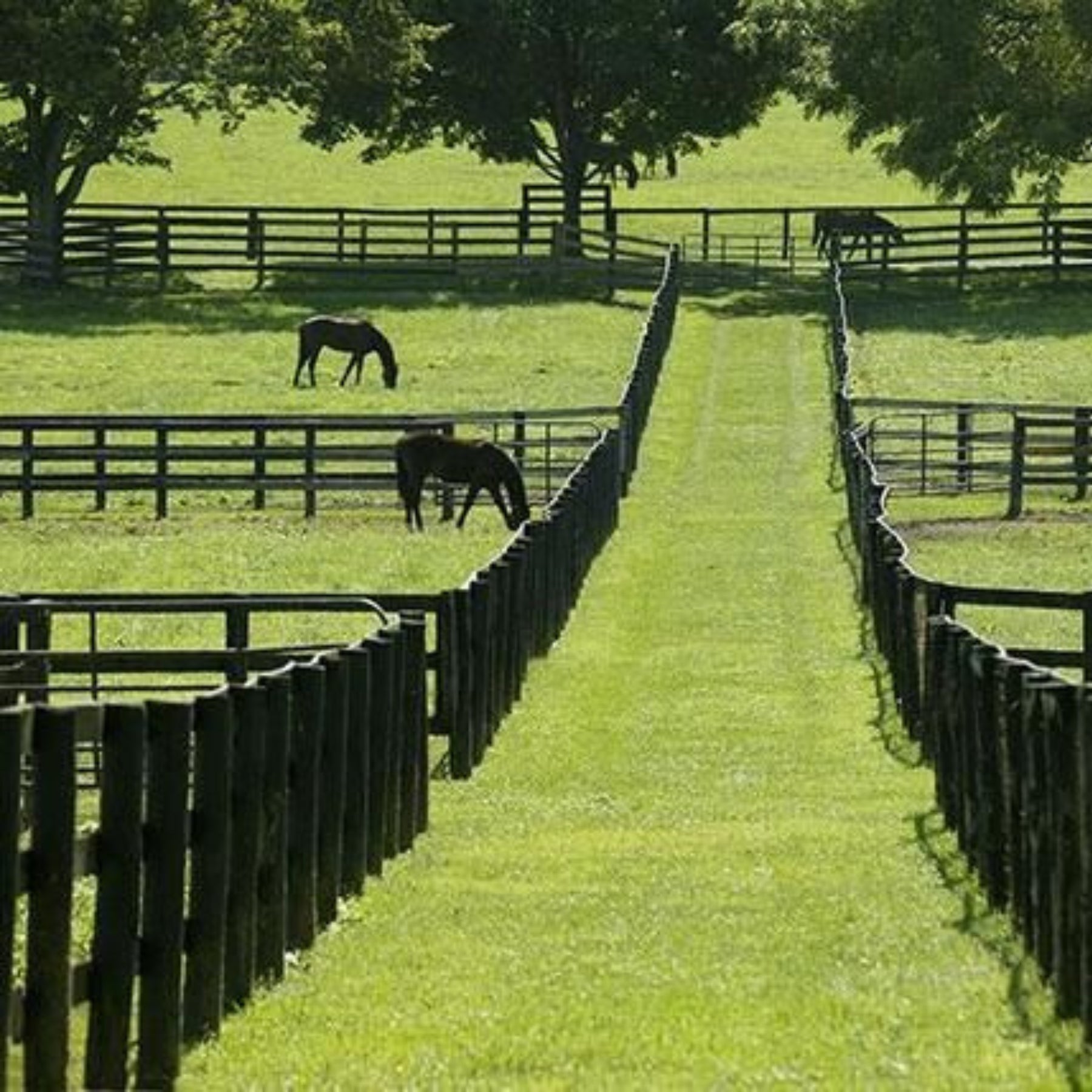

Available for grass as well
Slopes: Great for low slopes. Steeper slopes should move to the virgin plastic version of this grid (50-35HD)

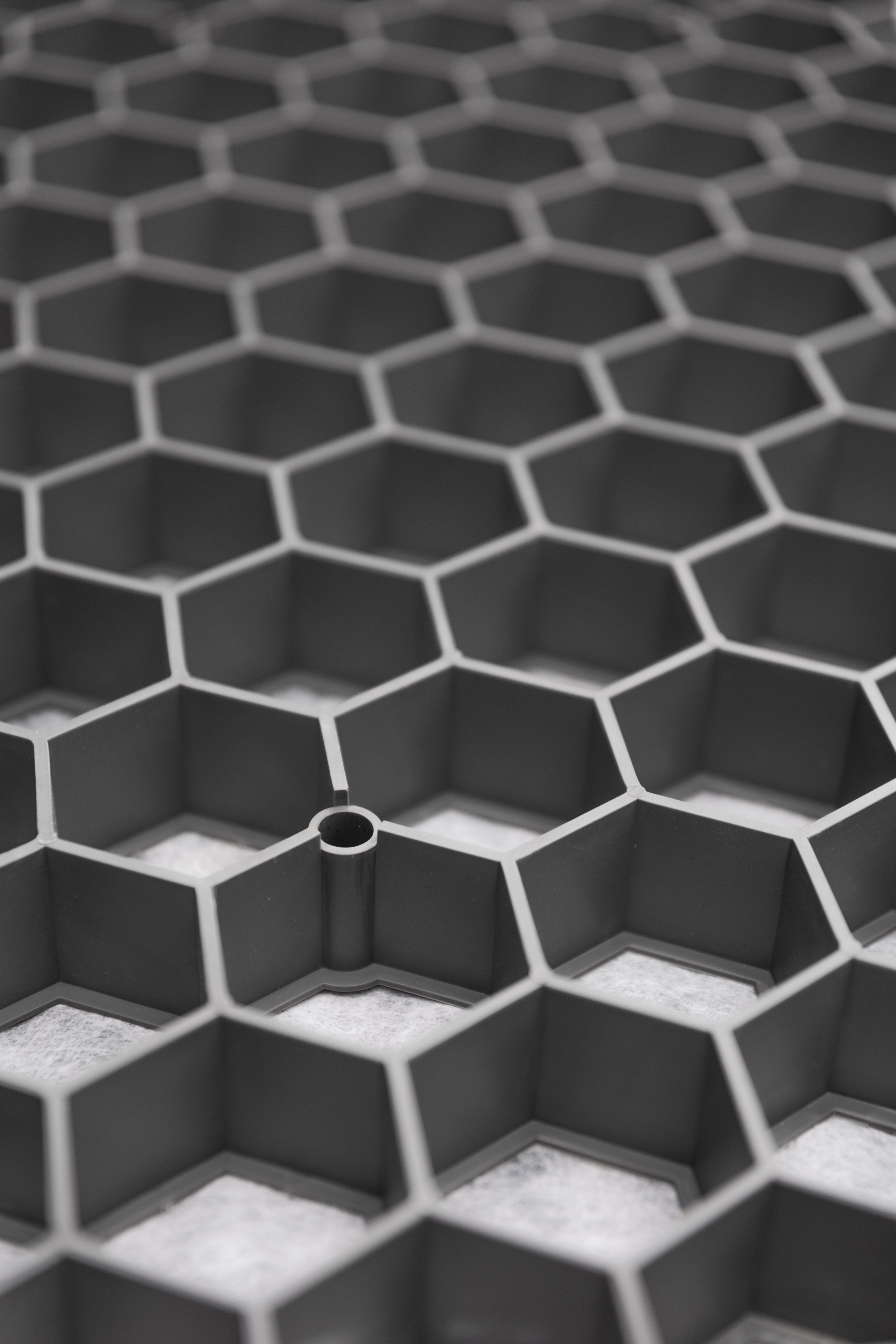

60-40 - extra heavy duty for slopes

Parking Lots, sloped applications, hot tub foundations, & more!

Use: Heavy duty -  vehicular traffic, commercial parking, sloped driveways, green roofs, flood zones
Gravel size: 7 – 15 mm
Cell Size: 60 mm wide x 40 mm deep
Cell Wall Thickness: 2.5 mm
Sheet Size: 1.15 m x 1.0 m (= 12.4 sq.ft.)
Cell Colour: Black (100% post-consumer recycled materials)
Geotextile Fabric: Yes
Compressive Strength: 200 t/m2 (empty)
Suitable for vehicles: Yes, Regular and Heavy Duty Vehicles
Core Markers: Yes

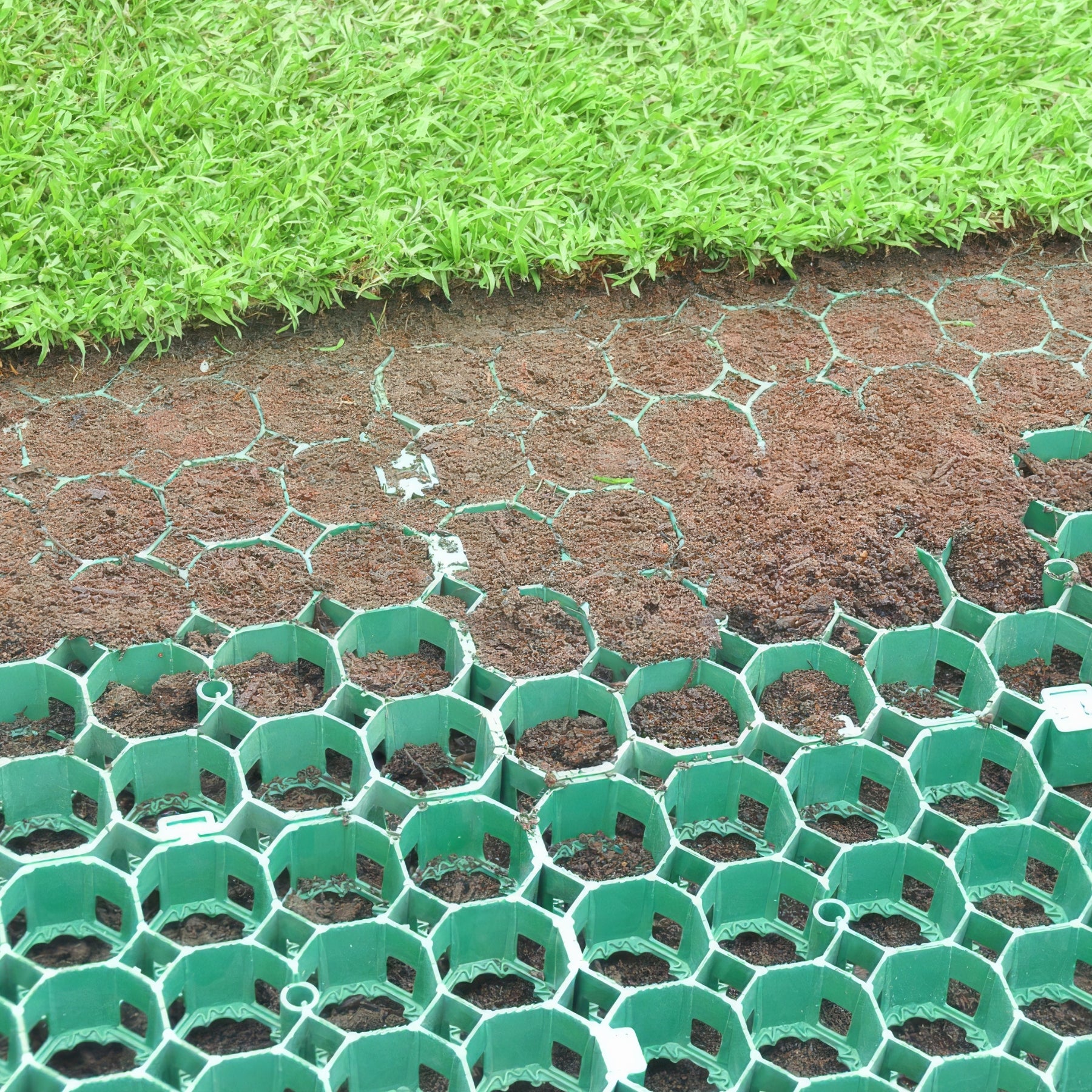

Available for grass as well
Slopes: Excellent, any slope. features both lateral and vertical drain design

65-45 - Ultra heavy duty

Designed for regular heavy duty commercial use

Material 100% recycled polypropylene
Colour Black (recycled)
Grid Dimension (in) 44.3” x 30.5” x 1.8” (1125mm x 775mm x 45mm)
Grid Weight (lbs) 11 lbs/m2 (5.5kg/m2)
Cell Shape Honeycomb
Cell Dimension(in) 2.6” x 1.8” x 0.12” (65mm x 45mm x 3mm)
Cell Wall Thickness 0.12” (3mm)
Crush Resistance (unfilled) > 46 400 lbs/sq.ft.(250 tons/m2)
Load Bearing Capacity (filled) > 65 000 lbs/sq.ft.(Over 350 tons/m2)
Temperature Range -52°C to- +90°C
Chemical Resistance Excellent
UV Resistance Excellent
Suggested Aggregate Size (in) 0.2”-0.8” (5-20mm)

Available for grass as well
