core Landscape Products
Find the right Grid for you
Whether you're building a new patio for your family or a contractor installing the cities new green space, we've got a grid for you!
Doing a larger project ? Choose the "request a quote" option for pricing
50-35 Heavy Duty

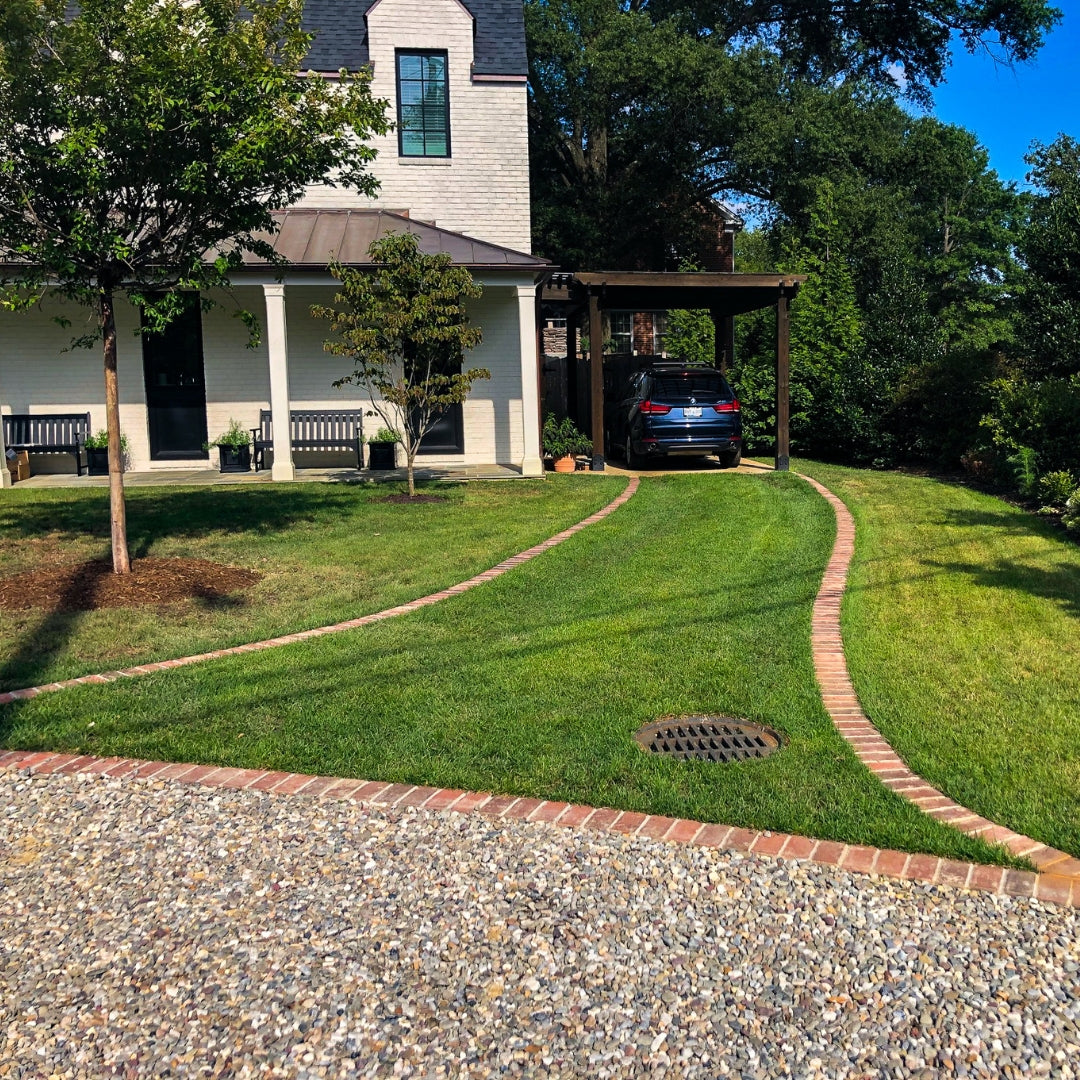

Residential driveways & Commercial patios
Use: Heavy Duty - commercial paths, residential driveways, restaurant patios, and more
Cell Size: 50 mm wide x 35 mm deep
Cell Wall Thickness: 2.0 mm
Sheet Size: 1.15 m x .78 m (= 9.7 sq.ft.)
Cell Colour: Green
Geotextile Fabric: No
Compressive Strength: 150 t/m2 (empty)
Suitable for vehicles: Yes
CORE Markers: Yes
Structural Soil Mix can be found at the bottom of this page
60-40 - extra heavy duty for slopes

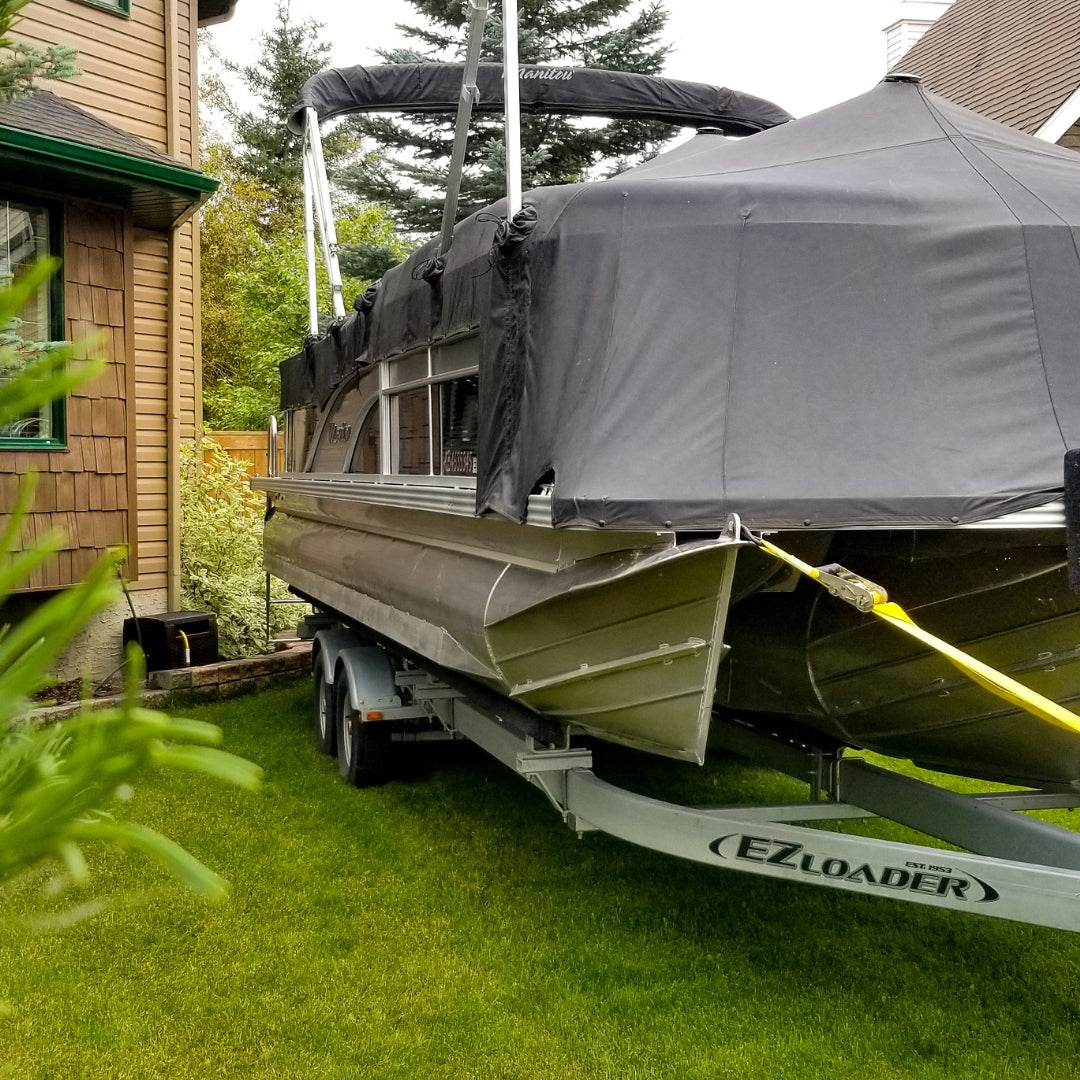

Parking Lots, sloped applications, hot tub foundations, & more!
Use: Heavy duty - vehicular traffic, commercial parking, sloped driveways, green roofs, flood zones
Cell Size: 60 mm wide x 40 mm deep
Cell Wall Thickness: 2.5 mm
Sheet Size: 1.15 m x 1.0 m (= 12.4 sq.ft.)
Cell Colour: Green
Geotextile Fabric: No
Compressive Strength: 200 t/m2 (empty)
Suitable for vehicles: Yes, Regular and Heavy Duty Vehicles
Core Markers: Yes
Structural Soil Mix can be found at the bottom of this page

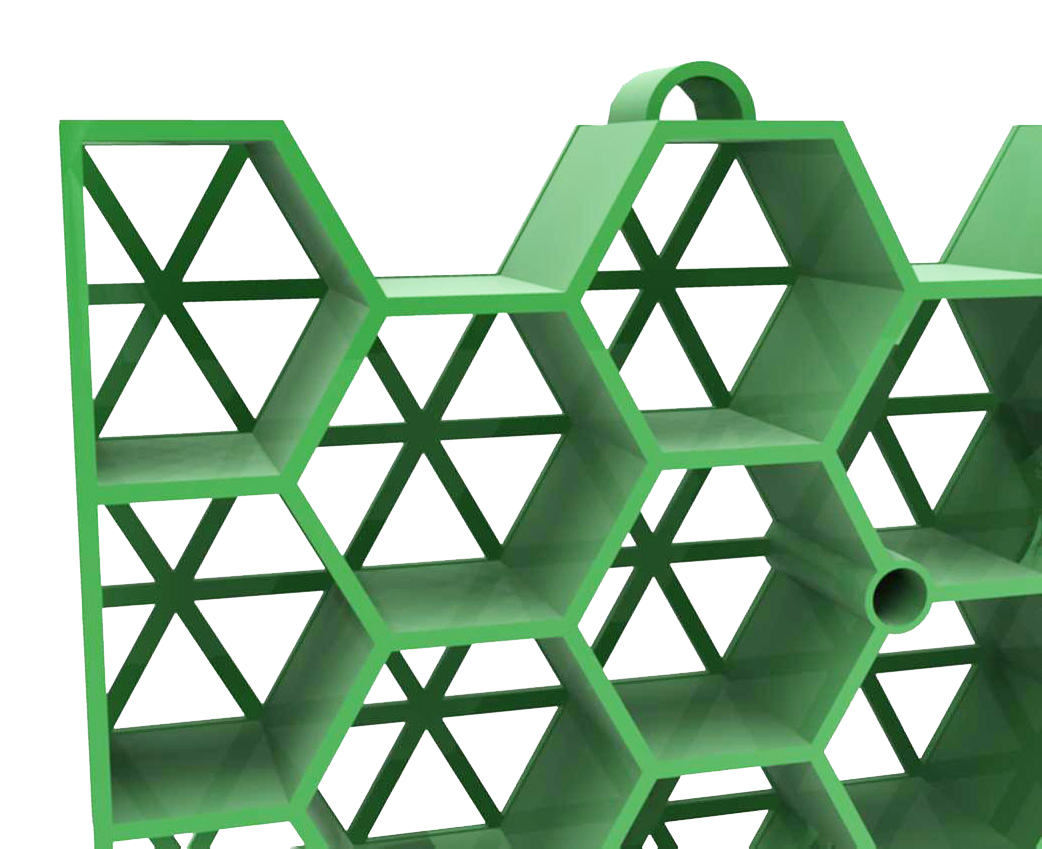

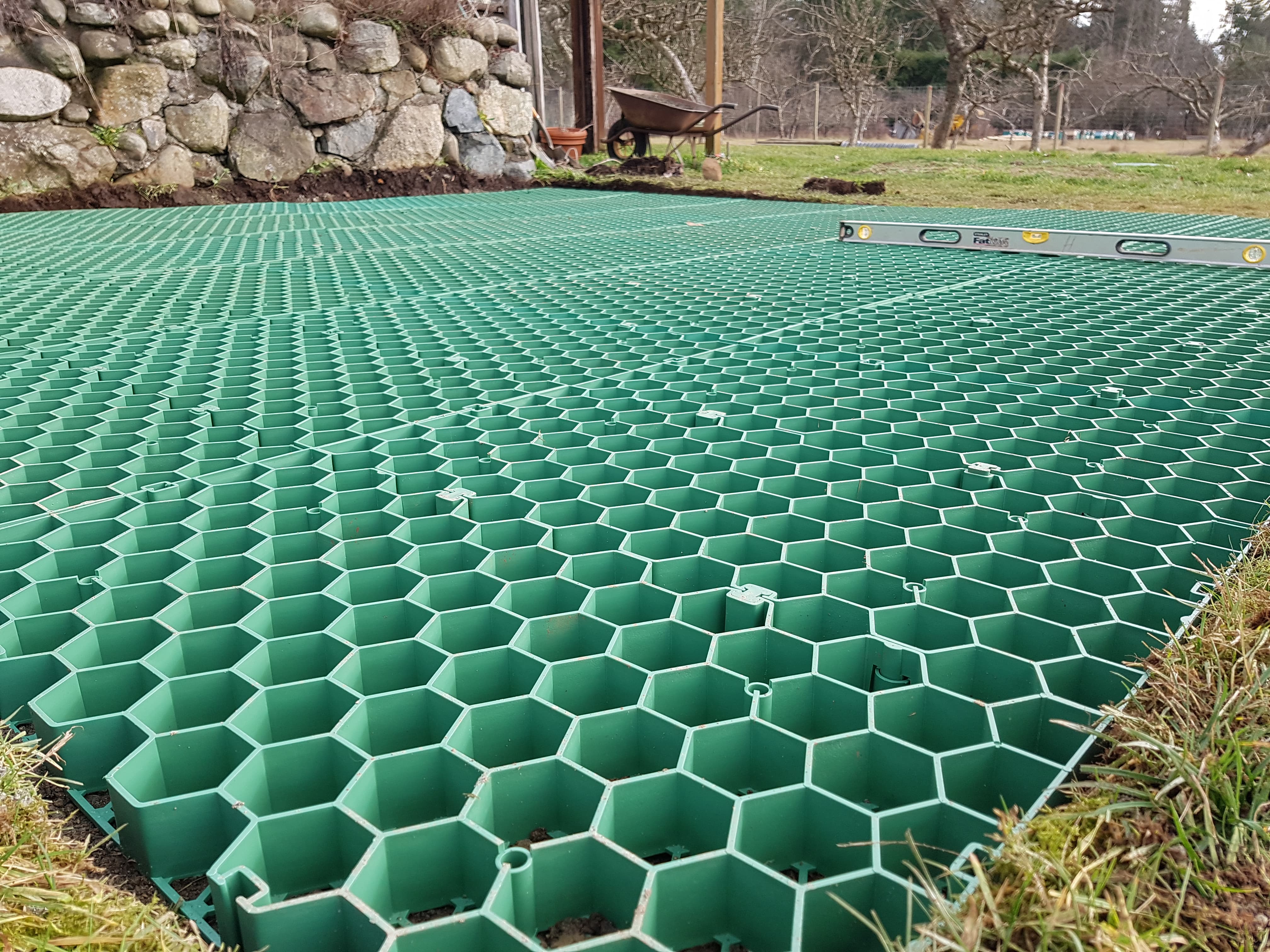

65-45 - Ultra heavy duty
Designed for regular heavy duty commercial use
Material: 100% recycled polypropylene
Colour: Green
Grid Dimension: (in) 44.3” x 30.5” x 1.8” (1125mm x 775mm x 45mm)
Grid Weight: (lbs) 11 lbs/m2 (5.5kg/m2)
Cell Shape: Honeycomb
Cell Dimension: (in) 2.6” x 1.8” x 0.12” (65mm x 45mm x 3mm)
Cell Wall Thickness 0.12” (3mm)
Crush Resistance: (unfilled) > 46 400 lbs/sq.ft.(250 tons/m2)
Load Bearing Capacity: (filled) > 65 000 lbs/sq.ft.(Over 350 tons/m2)
Temperature Range: -52°C to- +90°C
Chemical Resistance: Excellent
UV Resistance: Excellent
Structural Soil Mix can be found at the bottom of this page
about

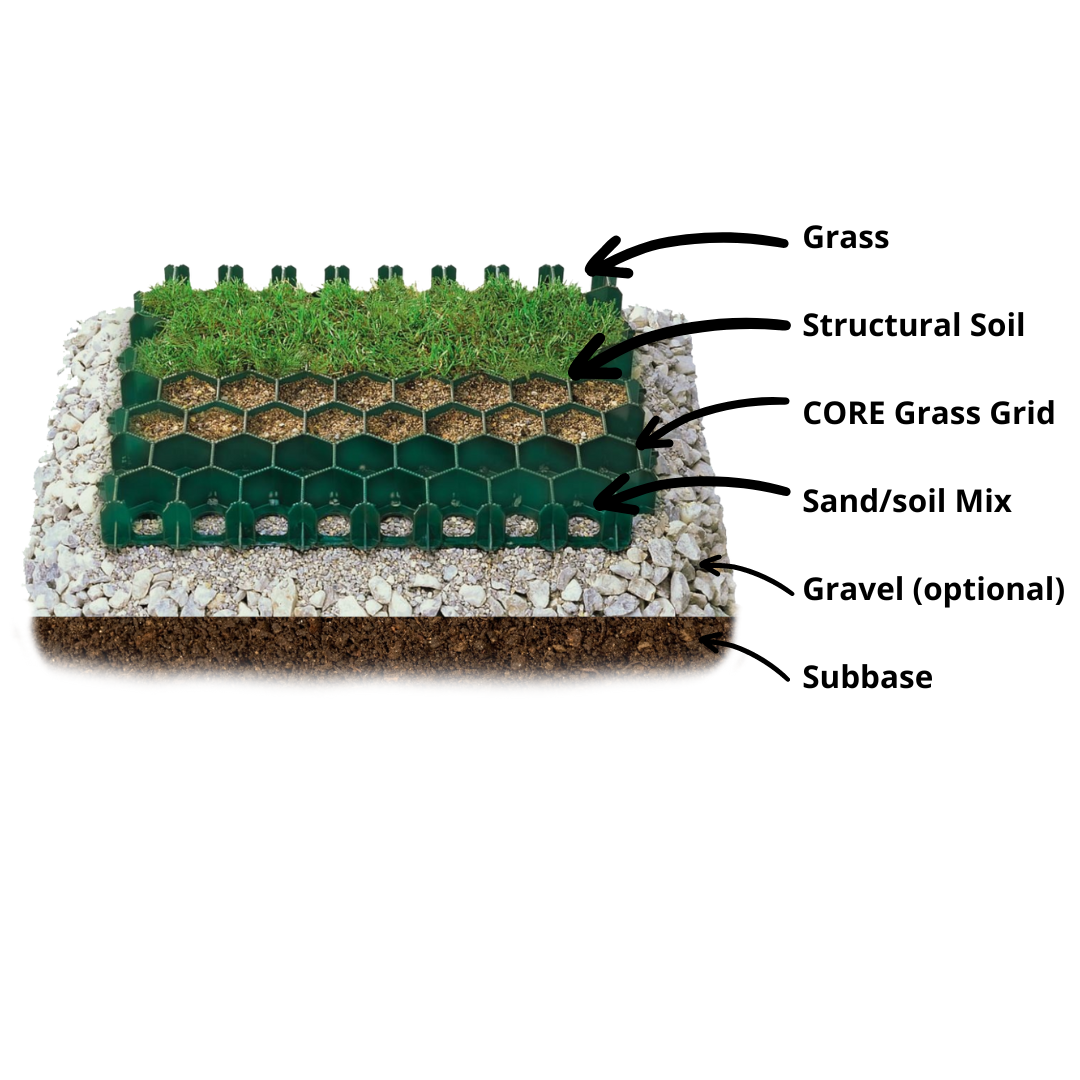

Structural soil mix
Mix the following together to create your structural soil mix
- 20% Top Soil
- 50% Sand
- Osmocote (fertilizer pellets)
- 30% - <1/2" screened compost
- 10% diatomaceous earth (optional) - holds water to reduce watering by 40%
Grass seed mix appropriate to the local environment - ideally both drought tolerant and fast growing seed types
