Learn More - Gravel Foundations

About

100% Permeable

Our grids are designed to be 100% permeable, effectively eliminating puddles and ruts and significantly reducing the burden on stormwater management systems.

About

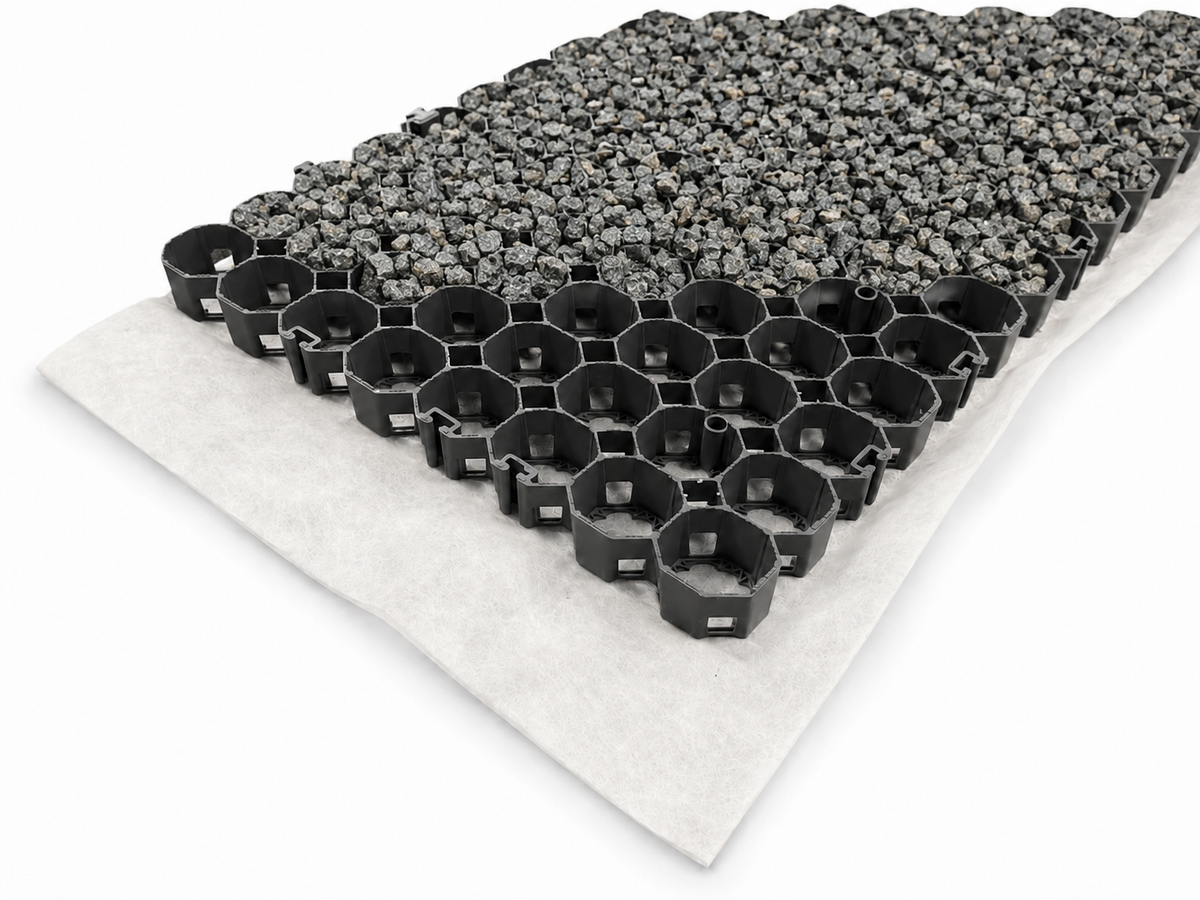

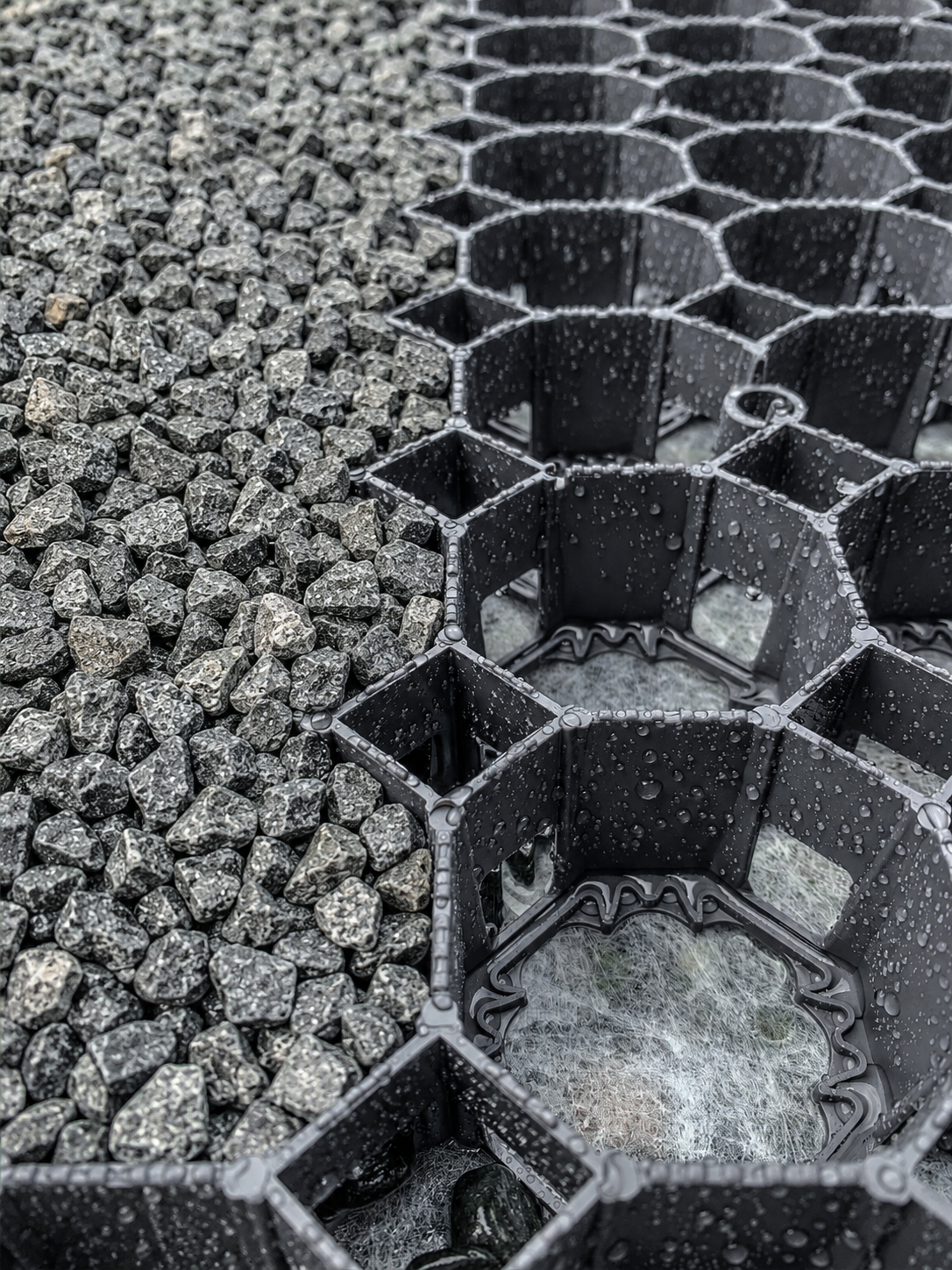

Heat welded geo-textile

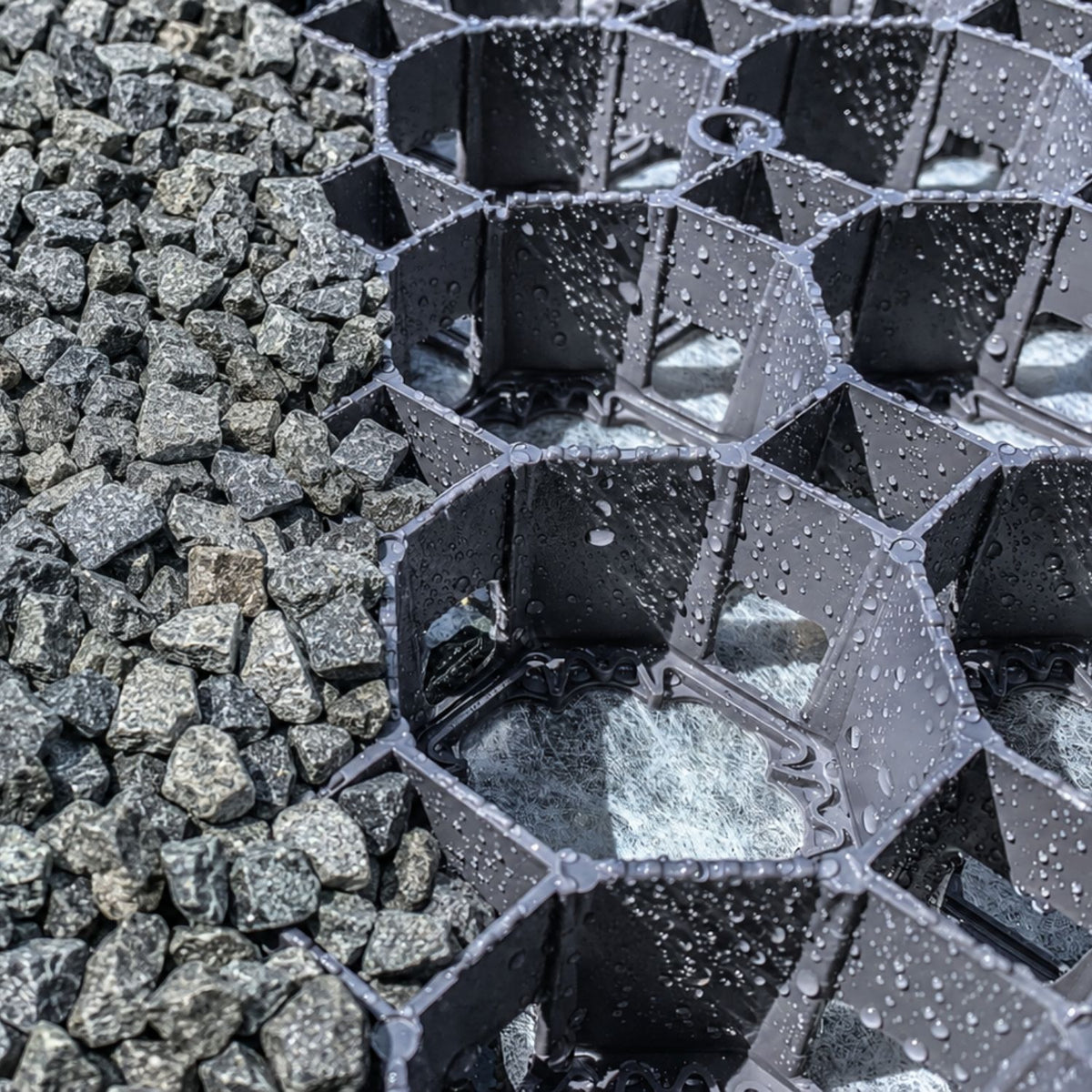

We stand alone in offering an innovative, non-rotting, heat-welded geo-textile. This advanced fabric not only secures the gravel within the cell to prevent bulging by barring gravel migration underneath but also adeptly suppresses weed growth from below, ensuring a clean, maintenance-free surface.

About

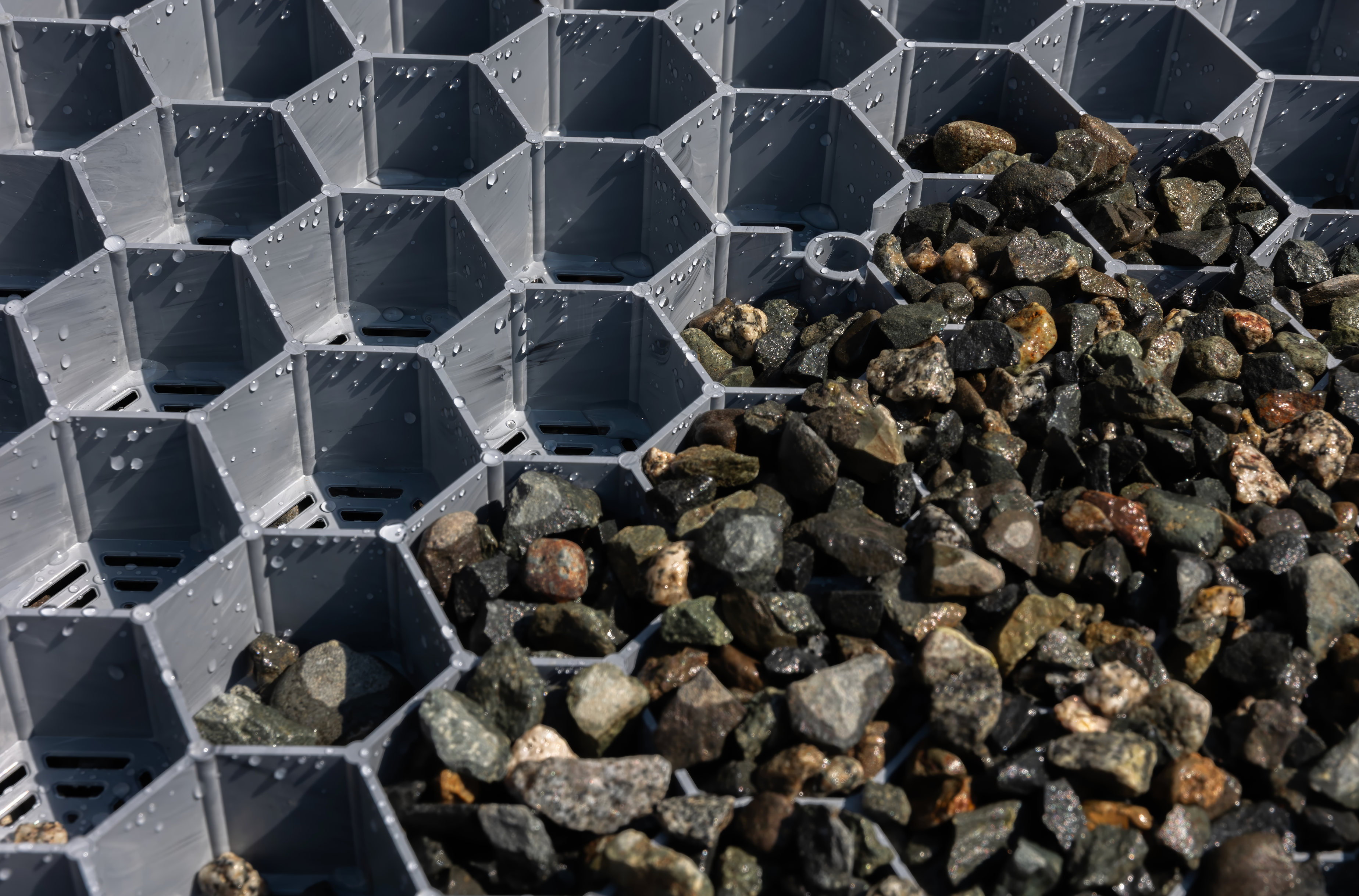

Worlds only grid system for steep slopes

Our company exclusively provides a grid tailored for sloped applications, setting us apart in the industry. The 60-40 grid, with its innovative lateral drainage design, ensures seamless water flow between cells, effectively preventing any accumulation on slopes. Additionally, the grid is equipped with dedicated slots for inserting 8-12 inch galvanized nails, anchoring the grid firmly in place and virtually eliminating slippage risks. This combination of efficient drainage, secure anchoring, advanced geo-textile, and hexagonal design culminates in a foundation of unmatched permeability and stability.

About

Serious Versatility

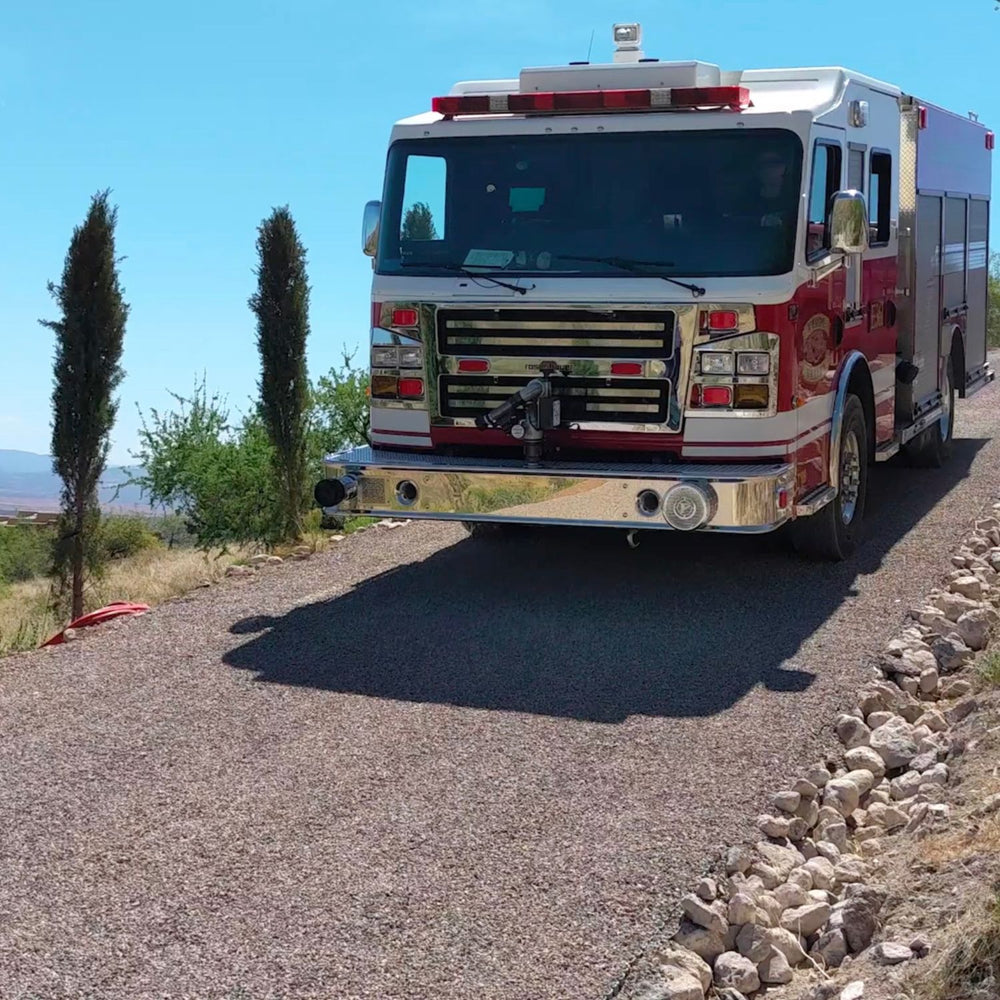

From residential patios to sloped firetruck access lanes, we've got you covered!

core Landscape Products

Find the grid right for you

Whether you're building a new patio for your family or a contractor installing the cities new green space, we've got a grid for you!

38-18 - Light Duty

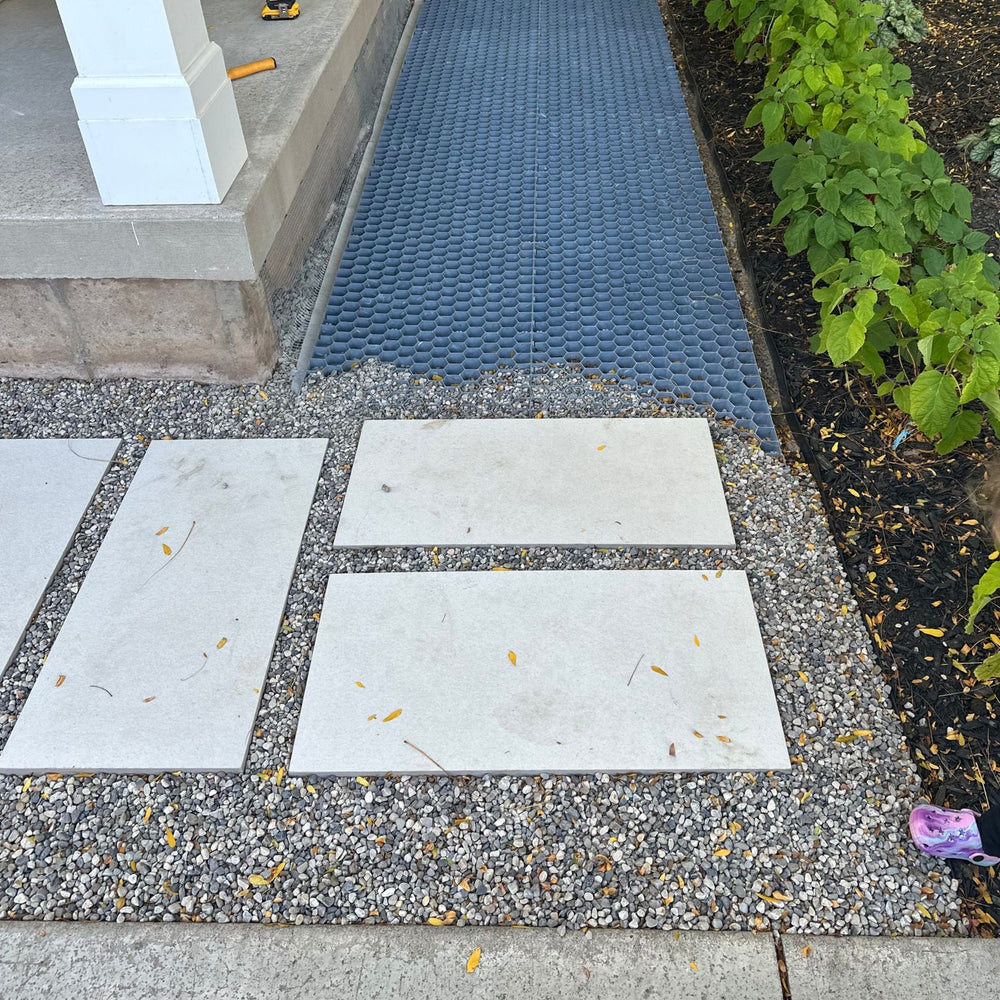

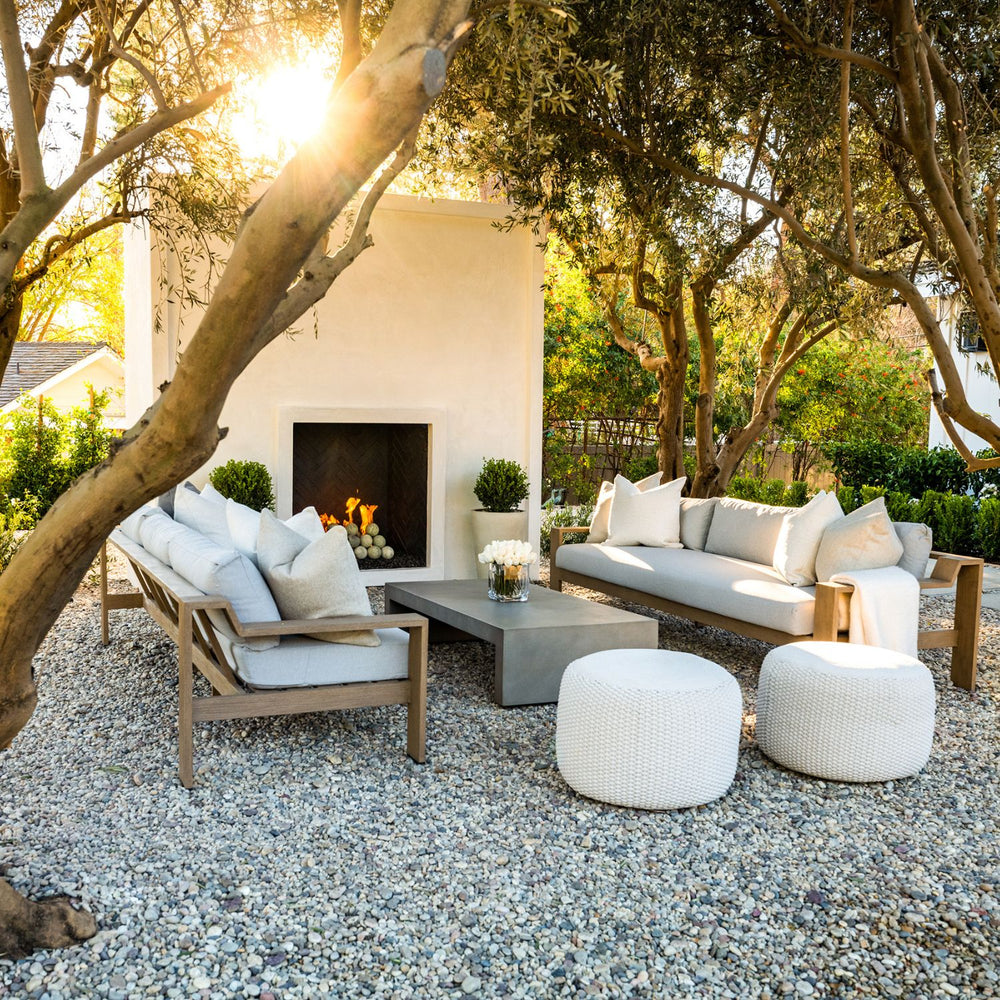

Residential Path & Patio

Use: Light duty - residential paths, patios, and landscaping
Gravel size: 3 - 10 mm
Cell Size: 38 mm wide x 18 mm deep
Cell Wall Thickness: 1.0 mm
Sheet Size: 1.15 m x .8 m (= 9.9 sq. ft.)
Cell Colour: White
Geotextile Fabric: Yes
Compressive Strength: 40 t/m2 (empty)
Suitable for vehicles: No, pedestrian traffic only
CORE Markers: Yes
Slopes: Excellent

50-30 - Medium Duty

Patio, Pathway, Parking pads

Use: Light to Medium duty - patios, pathways, light-duty parking pads, and landscaping
Gravel size: 5 -15 mm
Cell Size: 50 mm wide x 30 mm deep
Cell Wall Thickness: 1.3 mm
Sheet Size: 1.2 m X 0.8 m (= 10.33 sq.ft.)
Cell Colour: White
Geotextile Fabric: Yes
Compressive Strength: 60 t/m2 (empty)
Suitable for vehicles: Yes, light duty vehicles only
CORE Markers: Yes
Slopes: Great but use dependent: i.e. parking: no greater than 10 degree, other non-vehicular use: steep slope suitable.

50-35 Heavy Duty

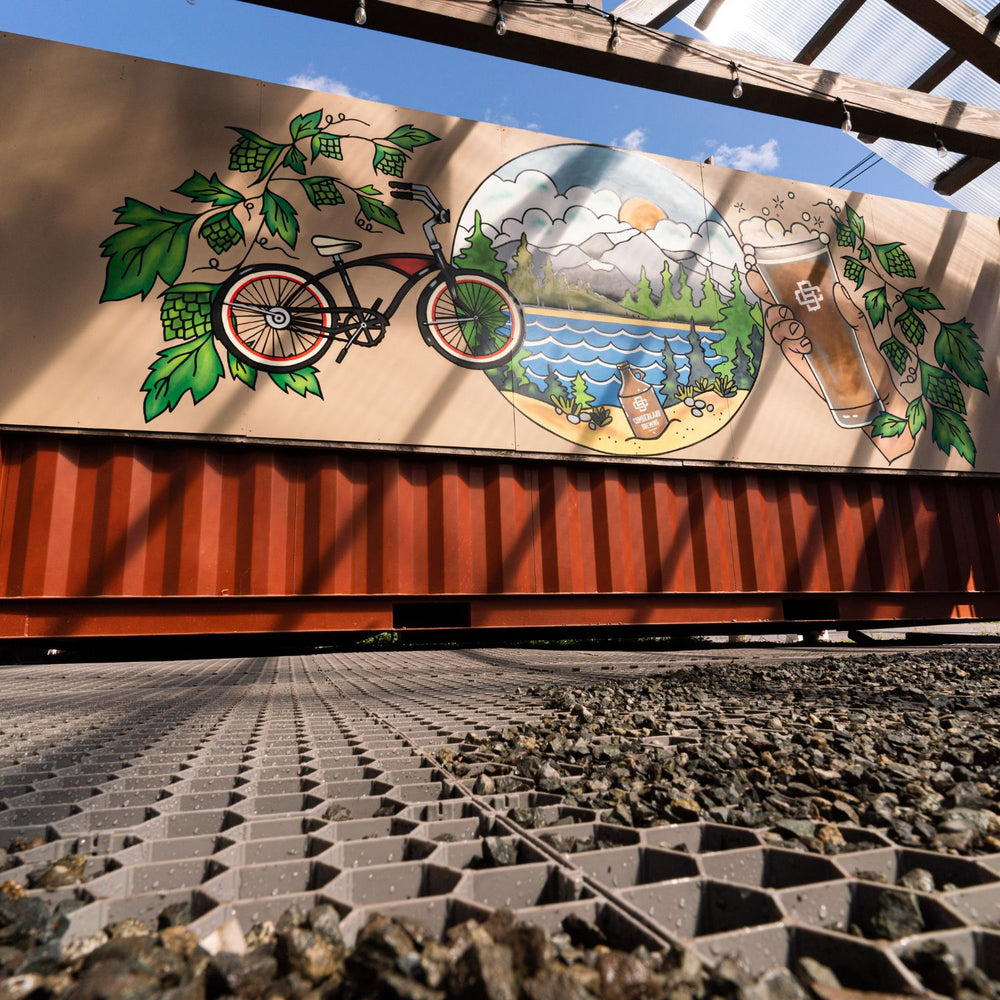

Residential driveways & Commercial patios

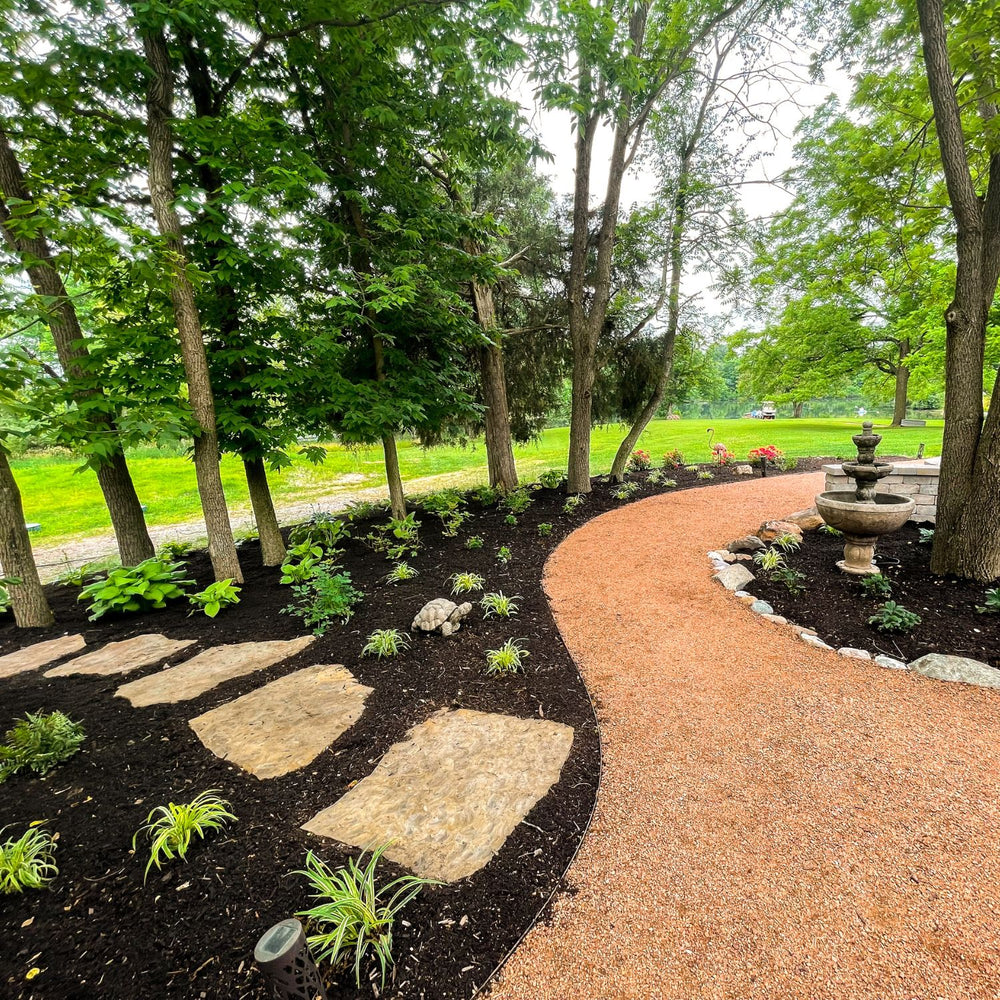

Use: Heavy Duty - commercial paths, residential driveways, restaurant patios, and more
Gravel size: 7 – 15 mm
Cell Size: 50 mm wide x 35 mm deep
Cell Wall Thickness: 2.0 mm
Sheet Size: 1.15 m x .78 m (= 9.7 sq.ft.)
Cell Colour: Grey (Dark) or Black
Geotextile Fabric: Yes
Compressive Strength: 150 t/m2 (empty)
Suitable for vehicles: Yes
CORE Markers: Yes
Slopes: Great for low slopes. Steeper slopes should move to the virgin plastic version of this grid (50-35HD)

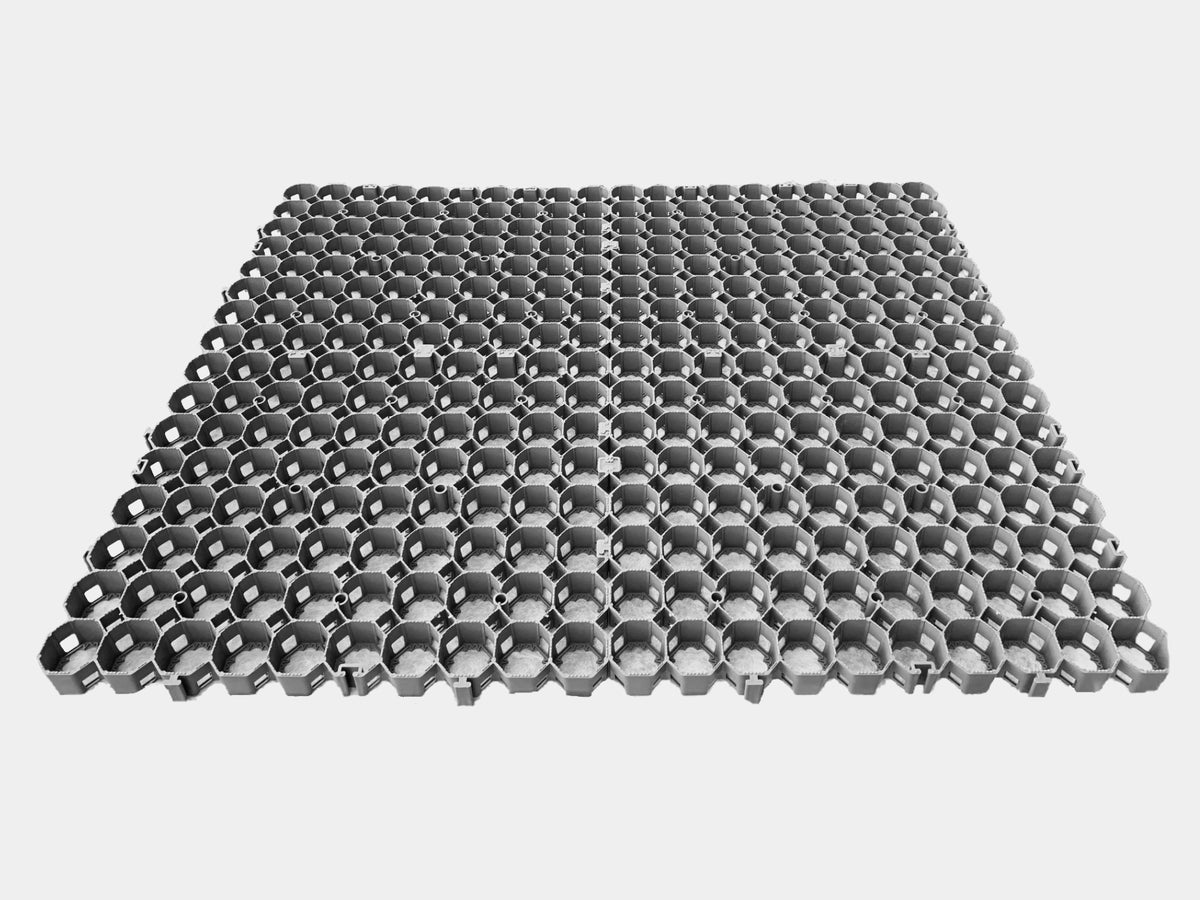

60-40 - extra heavy duty for slopes

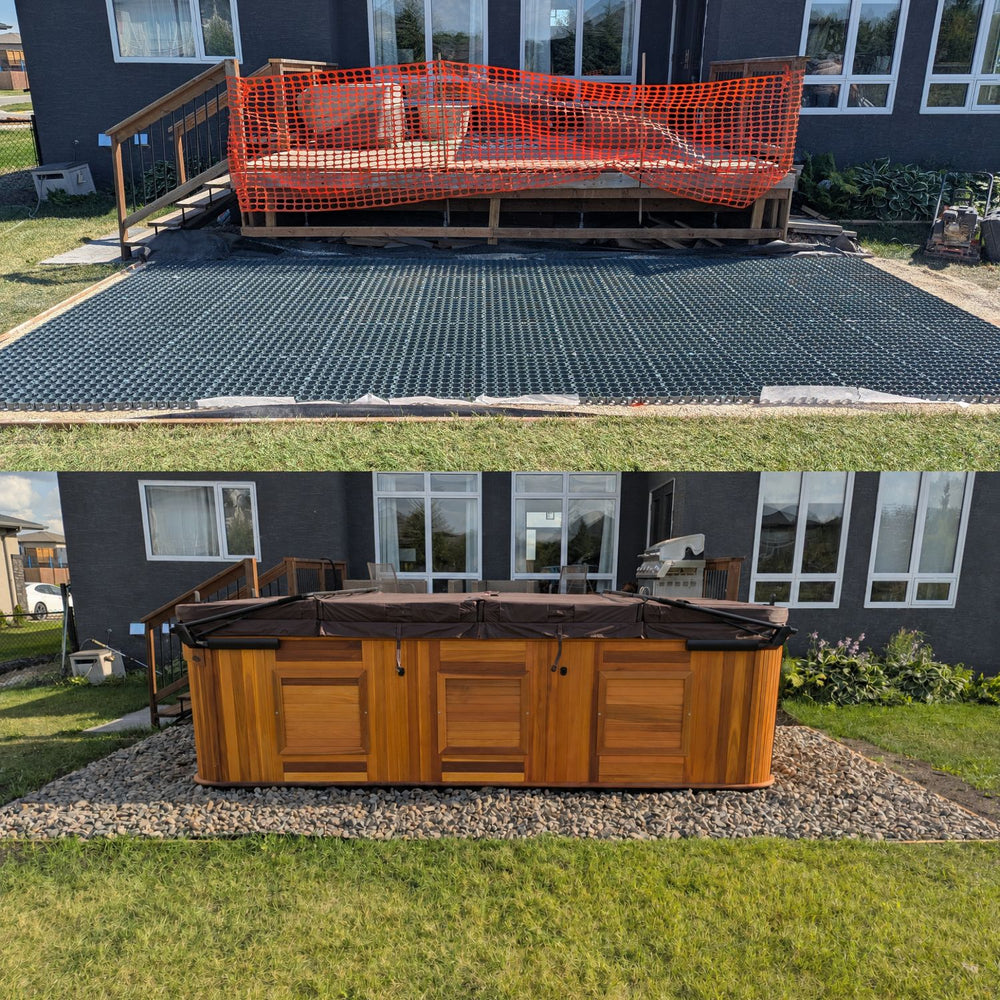

Parking Lots, sloped applications, hot tub foundations, & more!

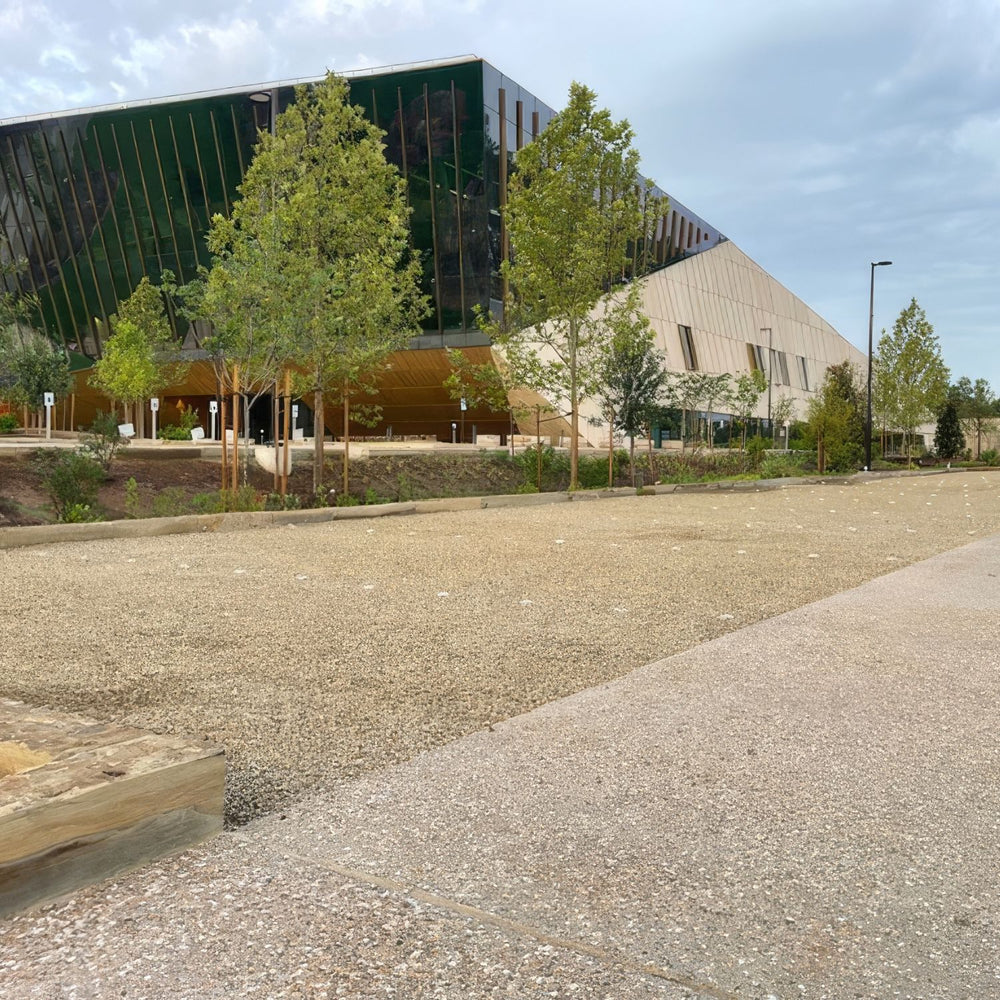

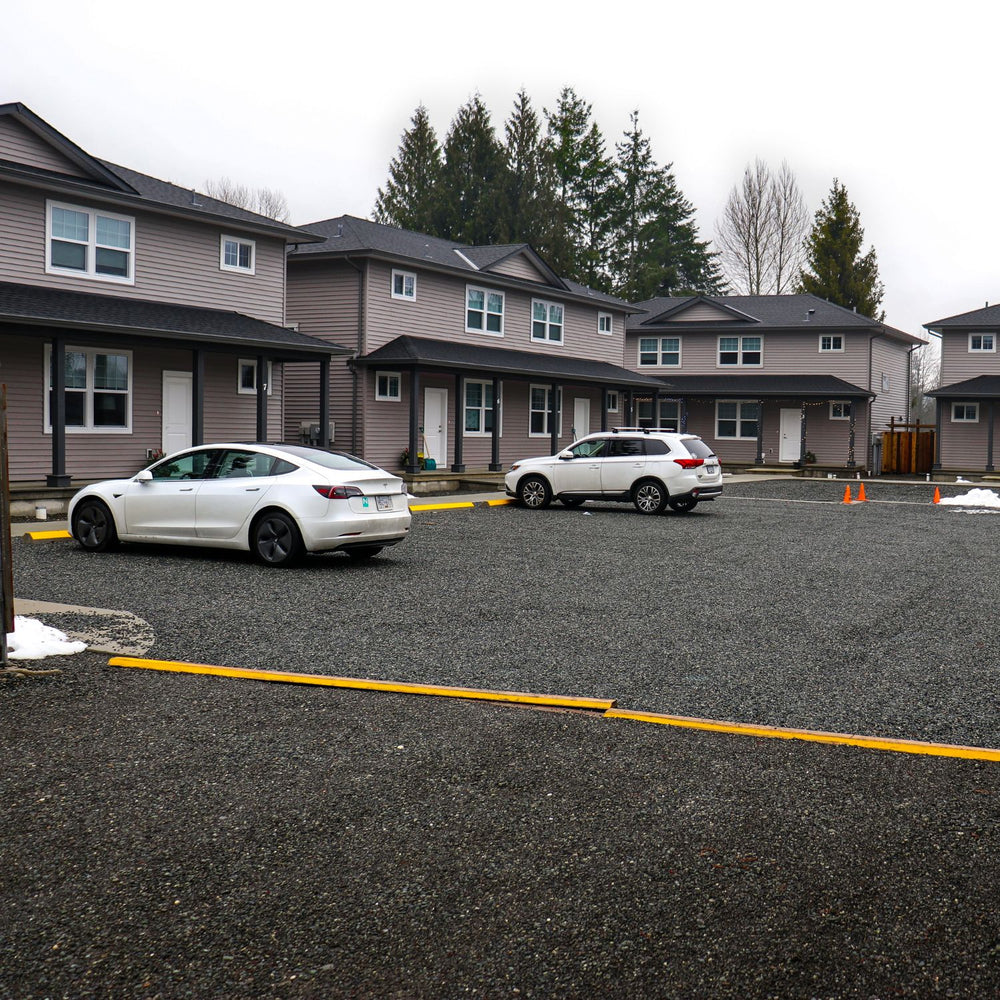

Use: Heavy duty -  vehicular traffic, commercial parking, sloped driveways, green roofs, flood zones
Gravel size: 7 – 15 mm
Cell Size: 60 mm wide x 40 mm deep
Cell Wall Thickness: 2.5 mm
Sheet Size: 1.15 m x 1.0 m (= 12.4 sq.ft.)
Cell Colour: Black (100% post-consumer recycled materials)
Geotextile Fabric: Yes
Compressive Strength: 200 t/m2 (empty)
Suitable for vehicles: Yes, Regular and Heavy Duty Vehicles
Core Markers: Yes
Slopes: Excellent, any slope. features both lateral and vertical drain design

65-45 - Ultra heavy duty

Designed for regular heavy duty commercial use

Material 100% recycled polypropylene
Colour Black (recycled)
Grid Dimension (in) 44.3” x 30.5” x 1.8” (1125mm x 775mm x 45mm)
Grid Weight (lbs) 11 lbs/m2 (5.5kg/m2)
Cell Shape Honeycomb
Cell Dimension(in) 2.6” x 1.8” x 0.12” (65mm x 45mm x 3mm)
Cell Wall Thickness 0.12” (3mm)
Crush Resistance (unfilled) > 46 400 lbs/sq.ft.(250 tons/m2)
Load Bearing Capacity (filled) > 65 000 lbs/sq.ft.(Over 350 tons/m2)
Temperature Range -52°C to- +90°C
Chemical Resistance Excellent
UV Resistance Excellent
Suggested Aggregate Size (in) 0.2”-0.8” (5-20mm)

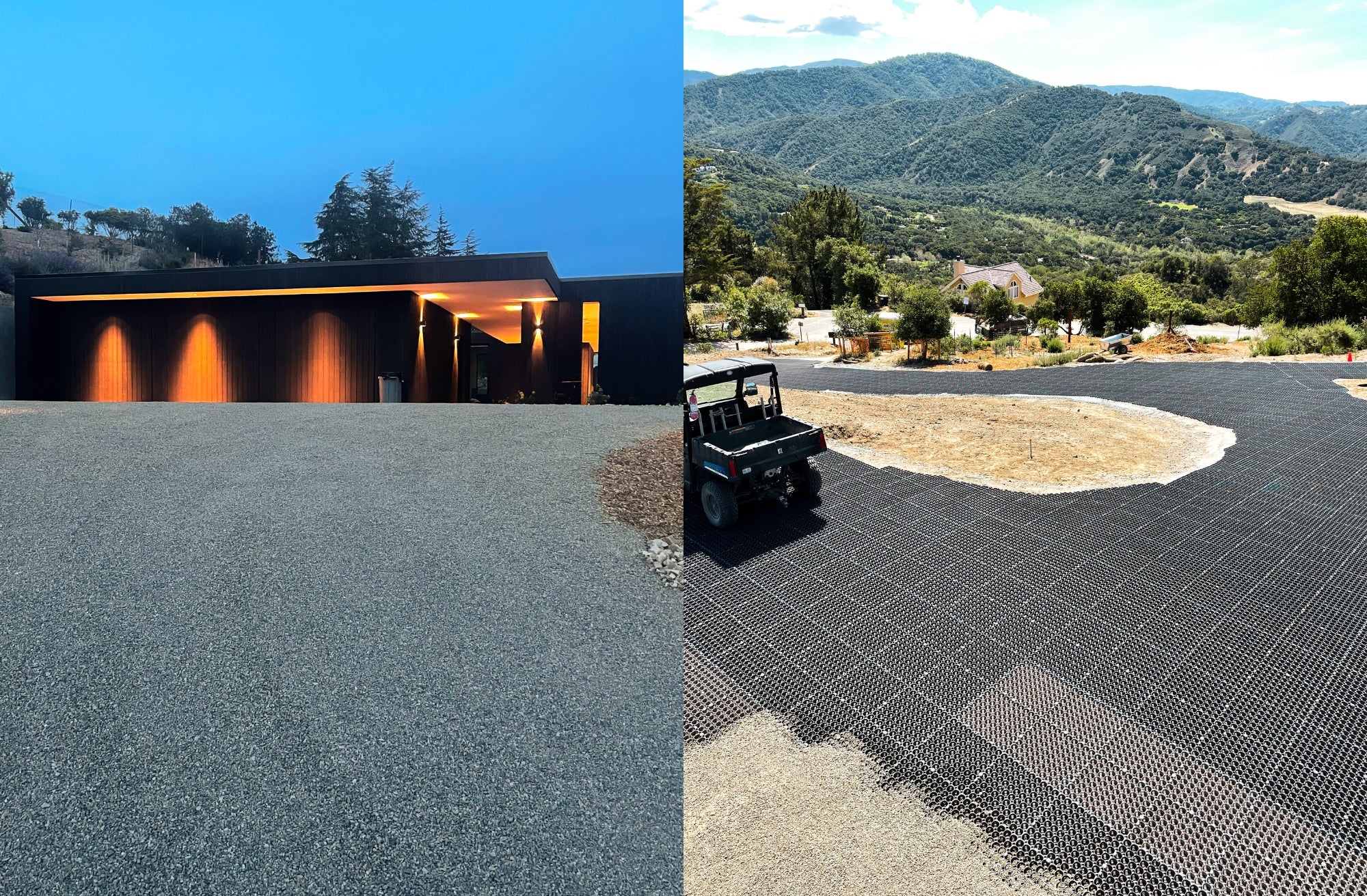

Before/after

Showcase your product benefit by using before/after image comparison.

Before

After

CORE's Unique

Competitive advantages

Heat-Welded Geo-textile

Pair text with an image to focus on your chosen product, collection, or blog post. Add details on availability, style, or even provide a review.

sloped applications

Pair text with an image to focus on your chosen product, collection, or blog post. Add details on availability, style, or even provide a review.

Versatility

Pair text with an image to focus on your chosen product, collection, or blog post. Add details on availability, style, or even provide a review.
